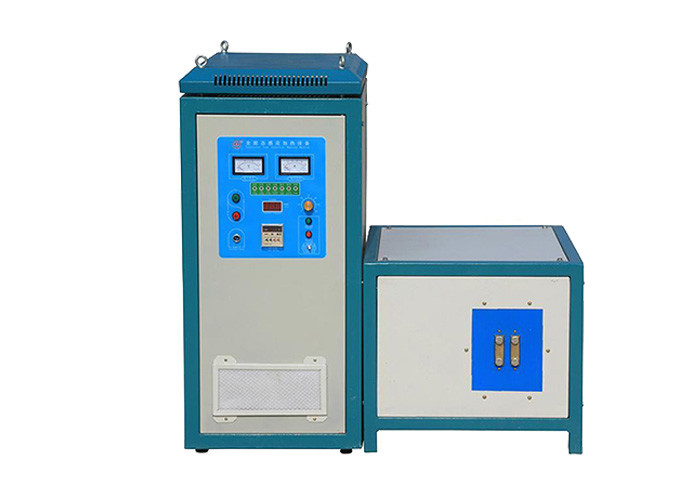

High Frequency Furnace High frequency electric furnace Manufactured by the manufacturer
Working principle of high frequency furnace:
The high-frequency current of the high-frequency electric furnace flows to the induction coil or other heating coils made of copper tubes, generating alternating electromagnetic fields. The materials to be heated are placed in the induction coil. The electromagnetic induction generates eddy currents in the materials, and the electrical energy is converted into thermal energy by the resistance to increase the temperature of the materials.
Technical Parameters Of High Frequency Furnace:
Serial number |
Product model |
output power |
Oscillation frequency |
output | Cooling water pressure |
water temperature |
1 | WGH-15 | 15Kw | 50-100KHz | 220V | 0.2Mpa | <40℃ |
2 | WGH-25 | 25Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
3 | WGH-35 | 35Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
4 | WGH-40 | 40Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
5 | WGH-60 | 60Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
6 | WGH-80 | 80Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
7 | WGH-100 | 100Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
8 | WGH-120 | 120Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
9 | WGH-160 | 160Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <41℃ |
10 | WGH-200 | 200Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <42℃ |
Performance characteristics of high frequency furnace:
1. IGBT power device and inverter technology are adopted, 100% load duration design, 24-hour operation under maximum power, and high reliability is guaranteed.
2. Light weight, small volume, simple installation, connected to 380V three-phase power supply, water inlet and outlet can be completed in a few minutes.
3. Especially safe, the output voltage is lower than 36V, eliminating the danger of high-voltage electric shock.
4. The heating efficiency is over 90%, and the energy consumption is only 20% - 30% of the high frequency of the old electronic tube. In the standby state, there is almost no electricity, and it can work continuously for 24 hours.
5. It occupies a small area and is easy to operate. It can be learned in a few minutes.
6. The inductor can be disassembled and replaced freely and quickly. The ultra fast heating greatly reduces the oxidation deformation of the workpiece.
7. The high-frequency furnace has the control function of constant current and constant power, which greatly optimizes the metal heating process, realizes efficient and rapid heating, and gives full play to its superior performance.
8. Automatic control type can adjust heating time, heating power, holding time, holding power and cooling time; It greatly improves the quality of heating products and the repeatability of heating, and simplifies the operation technology of workers.
9. It is the latest environmental protection product to replace the heating of dangerous goods such as oxygen, acetylene and coal, and the production without open fire is safer and more assured.
10. The equipment has perfect automatic protection functions such as overcurrent, overvoltage, overtemperature, water shortage and shortage, and is equipped with fault self diagnosis alarm system.
