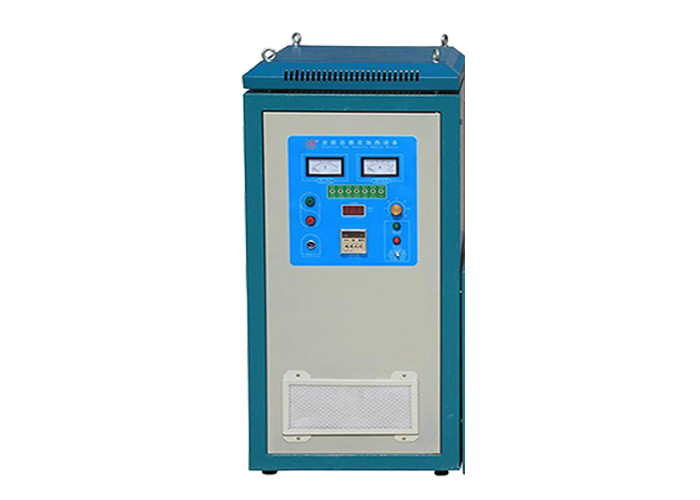

High Frequency Furnace Energy Simple Operation, Faster And More Convenient Startup High Frequency Electric Furnace
Features of high frequency furnace:
1. The imported components and accessories adopted by the equipment make the power, performance and quality of the equipment reach the domestic advanced production level.
2. The company's unique inverter technology and cooling system ensure that the equipment can work 24 hours a day.
3. When the equipment starts to work, it can be heated without preheating.
4. In the heating process, the heating speed is fast, and the workpiece is not deformed and the oxidation area is small.
5. The human-machine interface of the high-level human voice can provide a remote console to make the equipment operation easier.
6. When the workpiece is heated, it can be operated in batch or separately. It depends on the actual situation.
7. All equipment functions are visible on the display screen and can be operated separately and controlled independently.
Technical Parameters Of High Frequency Furnace:
Serial number |
Product model |
output power |
Oscillation frequency |
output | Cooling water pressure |
water temperature |
1 | WGH-15 | 15Kw | 50-100KHz | 220V | 0.2Mpa | <40℃ |
2 | WGH-25 | 25Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
3 | WGH-35 | 35Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
4 | WGH-40 | 40Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
5 | WGH-60 | 60Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
6 | WGH-80 | 80Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
7 | WGH-100 | 100Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
8 | WGH-120 | 120Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
9 | WGH-160 | 160Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <41℃ |
10 | WGH-200 | 200Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <42℃ |
High frequency furnace application:
1. Quenching of cutting tools and agricultural tools.
2. Heat transmission of steel pipes, steel plates and bars.
3. Smelting of metals.
4. Welding of elbows and copper parts.
