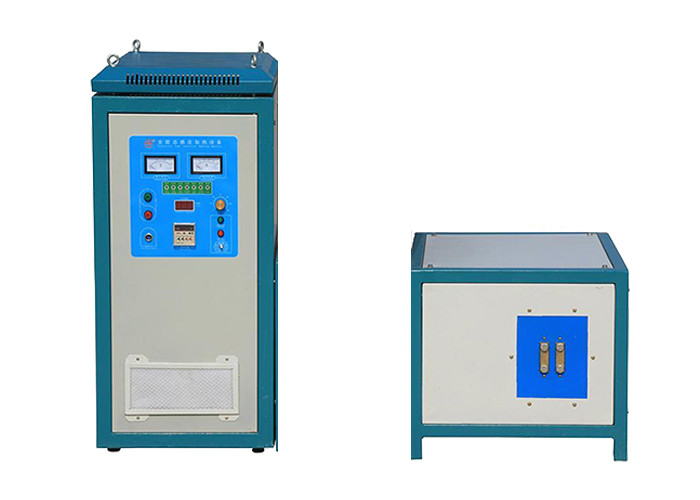

Energy Saving 20kw Electric Furnace High Frequency For Industrial
discussible
MOQ
discussible
Price
Energy Saving 20kw Electric Furnace High Frequency For Industrial
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, China
Brand Name: lincheng
Model Number: LC-WGH-20
High Light:

Energy Saving 20kw Electric Furnace

,

20kw Electric Furnace High Frequency

,

Industrial 20kw Electric Furnace

Payment & Shipping Terms
Packaging Details: Wooden case packaging
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Product Model: WGH-20
Output Power: 20Kw
Oscillation Frequency: 20KHz
Output: 380V
Cooling Water Pressure: 0.2Mpa
Water Temperature: 41℃
Product Description

High Frequency Furnace Energy Saving And Safety (Original Imported From Germany)



Advantages of high frequency furnace equipment:

1. It is easy to install and can be used by connecting the power supply, induction coil and inlet and outlet pipes; Small size, light weight, easy to use;

2. Wide heating range can heat various metal workpieces (replace the detachable induction ring according to the working switch);

3. When the power is controllable, the power can be adjusted to meet the needs of different heating temperatures and speeds

4. Less power consumption: about 70% less than the old electronic tube high-frequency equipment. The smaller the workpiece, the less power consumption;

5. Start the quick connect water, and start the heating after the power is on

6. The operation is simple and can be learned in a few minutes;

7. The protection system is equipped with over-voltage, over-current, overheating, water shortage and other alarm indicators, and is automatically controlled and protected

8. Good effect: the heating is very uniform, the heating is fast, the oxidation layer is small, and there is no waste after annealing; thirteen



Technical Parameters Of High Frequency Furnace:

Serial
number
Product
model
output
power
Oscillation
frequency
output Cooling
water pressure
water
temperature
1 WGH-15 15Kw 50-100KHz 220V 0.2Mpa <40℃
2 WGH-25 25Kw 50-100KHz 380V 0.2Mpa <40℃
3 WGH-35 35Kw 50-100KHz 380V 0.2Mpa <40℃
4 WGH-40 40Kw 50-100KHz 380V 0.2Mpa <40℃
5 WGH-60 60Kw 20-80KHz 380V 0.2Mpa <40℃
6 WGH-80 80Kw 20-80KHz 380V 0.2Mpa <40℃
7 WGH-100 100Kw 20-80KHz 380V 0.2-0.3Mpa <40℃
8 WGH-120 120Kw 20-80KHz 380V 0.2-0.3Mpa <40℃
9 WGH-160 160Kw 20-80KHz 380V 0.2-0.3Mpa <41℃
10 WGH-200 200Kw 20-80KHz 380V 0.2-0.3Mpa <42℃



Performance characteristics of high frequency furnace:

1. IGBT power device and inverter technology are adopted, 100% load duration design, 24-hour operation under maximum power, and high reliability is guaranteed.

2. Light weight, small volume, simple installation, connected to 380V three-phase power supply, water inlet and outlet can be completed in a few minutes.

3. Especially safe, the output voltage is lower than 36V, eliminating the danger of high-voltage electric shock.

4. The heating efficiency is over 90%, and the energy consumption is only 20% - 30% of the high frequency of the old electronic tube. In the standby state, there is almost no electricity, and it can work continuously for 24 hours.

5. It occupies a small area and is easy to operate. It can be learned in a few minutes.

6. The inductor can be disassembled and replaced freely and quickly. The ultra fast heating greatly reduces the oxidation deformation of the workpiece.

7. The high-frequency furnace has the control function of constant current and constant power, which greatly optimizes the metal heating process, realizes efficient and rapid heating, and gives full play to its superior performance.

8. Automatic control type can adjust heating time, heating power, holding time, holding power and cooling time; It greatly improves the quality of heating products and the repeatability of heating, and simplifies the operation technology of workers.

9. It is the latest environmental protection product to replace the heating of dangerous goods such as oxygen, acetylene and coal, and the production without open fire is safer and more assured.

10. The equipment has perfect automatic protection functions such as overcurrent, overvoltage, overtemperature, water shortage and shortage, and is equipped with fault self diagnosis alarm system.
