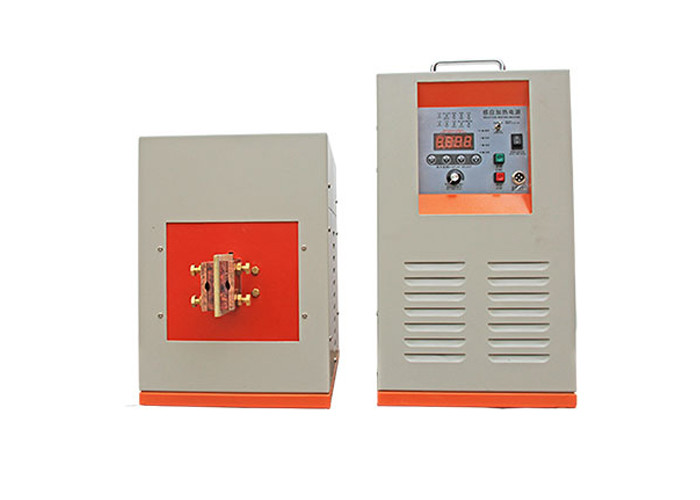

High Frequency Furnace Energy Variable Frequency Electromagnetic Heating Technology With Controllable Temperature
Features of high frequency furnace:
1. Digital induction heating power supply control is adopted, the equipment structure is very simple and the reliability is high.
2. High heating frequency, stable output and low power consumption.
3. Integrated intelligent design, using imported electronic components, high power output stability, and multiple function settings.
4. In the process of heating, the progress of temperature control is high, the heating is uniform, and the performance is stable.
5. Not only the power can be adjusted freely, but also the power can be constant. The imported capacitor voltage ensures that the equipment can work for a long time.
6. The function of the module is independently set and adjusted. There is not only a one button start button, but also an automatic alarm protection device.
Technical Parameters Of High Frequency Furnace:
Serial number |
Product model |
output power |
Oscillation frequency |
output | Cooling water pressure |
water temperature |
1 | WGH-15 | 15Kw | 50-100KHz | 220V | 0.2Mpa | <40℃ |
2 | WGH-25 | 25Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
3 | WGH-35 | 35Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
4 | WGH-40 | 40Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
5 | WGH-60 | 60Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
6 | WGH-80 | 80Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
7 | WGH-100 | 100Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
8 | WGH-120 | 120Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
9 | WGH-160 | 160Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <41℃ |
10 | WGH-200 | 200Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <42℃ |
Application fields of high frequency furnace:
1. Suitable for heating between any metals.
2. Suitable for welding between metal and plastic.
3. Suitable for welding between the same metal or different metals.
4. It is suitable for quenching, annealing, welding, tempering and forging of different kinds of metals.
5. It is suitable for smelting precious metals and non precious metals.
