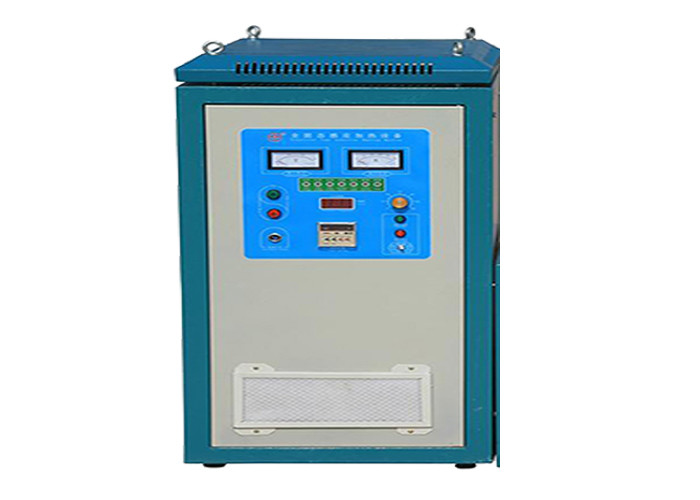

Induction High Frequency Furnace For Metal Melting Casting Forming
discussible
MOQ
discussible
Price
Induction High Frequency Furnace For Metal Melting Casting Forming
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, China
Brand Name: lincheng
Model Number: LC-WGH-30
High Light:

Induction High Frequency Furnace

,

Casting High Frequency Furnace

,

Metal induction casting furnace

Payment & Shipping Terms
Packaging Details: Wooden case packaging
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Product Model: WGH-30
Output Power: 30Kw
Oscillation Frequency: 30KHz
Output: 380V
Cooling Water Pressure: 0.2Mpa
Water Temperature: 43℃
Product Description

High Frequency Furnace Energy IGBT Original Imported From Germany, Induction Heating Is Safe And Reliable



Application of high frequency furnace equipment:

1, Heat treatment: local or overall quenching, annealing, tempering and diathermy of various metals;

2, Hot forming: whole forging, partial forging, hot upsetting and hot rolling;

3, Welding: brazing of various metal products, welding of various cutter blades and saw blades, welding of steel pipes and copper pipes, welding of the same and different metals;

4, Metal melting: the (vacuum) melting, casting and forming and evaporation coating of gold, silver, copper, iron, aluminum and other metals;

5, Other applications of high-frequency furnace: semiconductor single crystal growth, heat matching, bottle mouth heat sealing, toothpaste skin heat sealing, powder coating, metal implant plastic, etc



Technical Parameters Of High Frequency Furnace:

Serial
number
Product
model
output
power
Oscillation
frequency
output Cooling
water pressure
water
temperature
1 WGH-15 15Kw 50-100KHz 220V 0.2Mpa <40℃
2 WGH-25 25Kw 50-100KHz 380V 0.2Mpa <40℃
3 WGH-35 35Kw 50-100KHz 380V 0.2Mpa <40℃
4 WGH-40 40Kw 50-100KHz 380V 0.2Mpa <40℃
5 WGH-60 60Kw 20-80KHz 380V 0.2Mpa <40℃
6 WGH-80 80Kw 20-80KHz 380V 0.2Mpa <40℃
7 WGH-100 100Kw 20-80KHz 380V 0.2-0.3Mpa <40℃
8 WGH-120 120Kw 20-80KHz 380V 0.2-0.3Mpa <40℃
9 WGH-160 160Kw 20-80KHz 380V 0.2-0.3Mpa <41℃
10 WGH-200 200Kw 20-80KHz 380V 0.2-0.3Mpa <42℃



Performance characteristics of high frequency furnace:

1. IGBT power device and inverter technology are adopted, 100% load duration design, 24-hour operation under maximum power, and high reliability is guaranteed.

2. Light weight, small volume, simple installation, connected to 380V three-phase power supply, water inlet and outlet can be completed in a few minutes.

3. Especially safe, the output voltage is lower than 36V, eliminating the danger of high-voltage electric shock.

4. The heating efficiency is over 90%, and the energy consumption is only 20% - 30% of the high frequency of the old electronic tube. In the standby state, there is almost no electricity, and it can work continuously for 24 hours.

5. It occupies a small area and is easy to operate. It can be learned in a few minutes.

6. The inductor can be disassembled and replaced freely and quickly. The ultra fast heating greatly reduces the oxidation deformation of the workpiece.

7. The high-frequency furnace has the control function of constant current and constant power, which greatly optimizes the metal heating process, realizes efficient and rapid heating, and gives full play to its superior performance.

8. Automatic control type can adjust heating time, heating power, holding time, holding power and cooling time; It greatly improves the quality of heating products and the repeatability of heating, and simplifies the operation technology of workers.

9. It is the latest environmental protection product to replace the heating of dangerous goods such as oxygen, acetylene and coal, and the production without open fire is safer and more assured.

10. The equipment has perfect automatic protection functions such as overcurrent, overvoltage, overtemperature, water shortage and shortage, and is equipped with fault self diagnosis alarm system.
