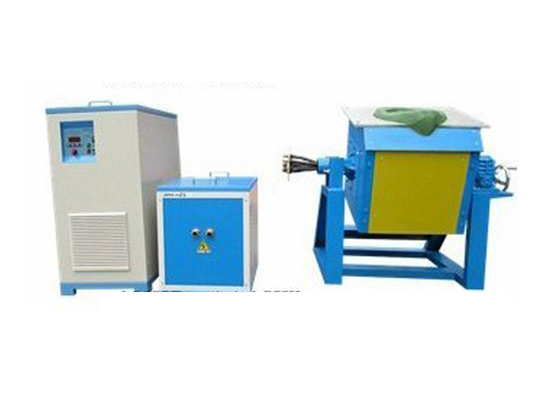

Product overview of small induction melting furnace:
Based on the principle of electromagnetic effect, an electric induction heating device can rapidly induce the metal materials in the inverter magnetic field to generate strong eddy currents, so that the metal materials can be heated up until they are melted. It can also penetrate the non-metallic materials and rapidly heat the metal materials locally or completely. The target metals are platinum, palladium, rhodium, gold, silver, copper, steel, aluminum, magnesium, activated carbon gold ash, gold sand, electrolytic mud, gold and silver powder, tin ash, tin slag, superalloys, precious metals, etc.
Parameters of small induction smelting furnace:
model | 20 | 25 | 35 | 45 | 70 | 90 | 110 | 170 |
Power | 20KW | 25KW | 35KW | 45KW | 70KW | 90KW | 110KW | 170KW |
Input current | 18A | 36A | 57A | 80A | 110A | 140A | 160A | 240A |
DC voltage | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
input voltage | 380V 50-60HZ | |||||||
Oscillation frequency | 1KHZ-20KHZ | |||||||
Connecting linemm² | 20 | 10 | 16 | 35 | 50 | 75 | 90 | 120 |
Control switch | 40A | 60A | 80A | 120A | 150A | 225A | 225A | 300A |
ground wire mm² | 2mm2 | |||||||
Cooling water pressure | ≥0.2MPa | |||||||
Cooling water flow | ≥10L/Min | ≥2151/Min | ≥220L/Min |
Advantages of small induction melting furnace:
The equipment has the advantages of self-locking protection such as overheating, over temperature, phase loss, water shortage, over-voltage, over-current, etc. The equipment has fast heating and temperature rise, reliable safety performance, water circulation and heat dissipation, automatic magnetic stirring of scum, small power consumption and high frequency, small equipment area, simple installation and maintenance, and is suitable for enterprises and individuals to move and process inverter integrated circuits to reduce power consumption and save electricity, and heat energy is concentrated and melted quickly.
