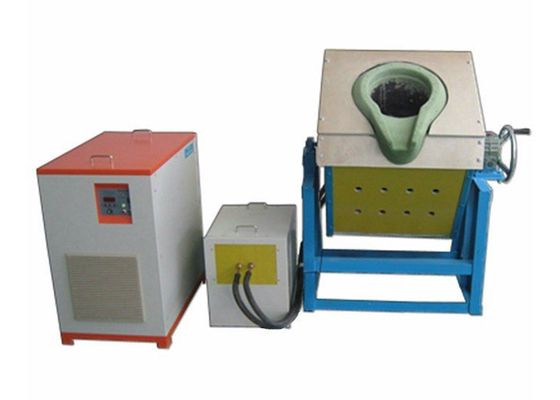

Features of small induction melting furnace:
1. Small induction smelting furnace adopts imported power devices from Siemens IGBT, which is more integrated and miniaturized, and the effective output power reaches more than 95%.
2. It is convenient to change furnace bodies with different weights, materials and starting methods to meet various smelting requirements; Vertical smelting furnace, manual smelting furnace, electric smelting furnace, smelting furnace for school laboratory.
3. Ultra small medium frequency induction heating power supply is adopted, which can save 30% energy compared with traditional silicon controlled rectifier.
4. Good heat transmission and uniform temperature.
5. The medium frequency magnetic field has a magnetic stirring effect on the molten metal, which is conducive to keeping the composition uniform.
6. According to the recommended equipment and large smelting capacity, the smelting time of each furnace is 20-30 minutes (under furnace hot state).
Parameters of small induction smelting furnace:
model | 25 | 30 | 35 | 45 | 70 | 90 | 110 | 170 |
Power | 25KW | 30KW | 35KW | 45KW | 70KW | 90KW | 110KW | 170KW |
Input current | 36A | 47A | 57A | 80A | 110A | 140A | 160A | 240A |
DC voltage | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
input voltage | 380V 50-60HZ | |||||||
Oscillation frequency | 1KHZ-20KHZ | |||||||
Connecting linemm² | 8 | 10 | 16 | 35 | 50 | 75 | 90 | 120 |
Control switch | 40A | 60A | 80A | 120A | 150A | 225A | 225A | 300A |
ground wire mm² | 2mm2 | |||||||
Cooling water pressure | ≥0.2MPa | |||||||
Cooling water flow | ≥10L/Min | ≥2151/Min | ≥220L/Min |
Advantages of small induction melting furnace:
1. Small induction smelting furnace is used for smelting steel, stainless steel, copper, gold, silver and other materials.
2. Small induction smelting furnace has good electromagnetic stirring effect, which is conducive to uniform temperature and structure of molten metal, scum and impurities reduction.
3. The frequency range is wide. From 1KHZ-20KHZ, the induction coil can be designed by comprehensively considering the smelting amount, electromagnetic stirring, heating efficiency and other factors. The compensation capacitance determines the output frequency.
4. It can save at least 20% energy compared with silicon controlled medium frequency.
5. The equipment is small in size and light in weight. The smelting capacity is from 1kg to 200kg, which is suitable for both factory production and material test in schools and research institutes.
