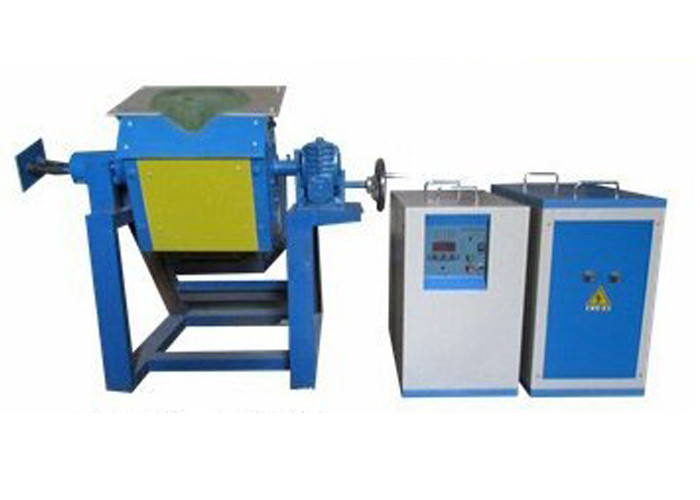

Product overview of small induction melting furnace:
As the name suggests, smelting furnace is a furnace for smelting metal. At present, the popular smelting furnace is medium frequency smelting furnace. Small induction melting furnace is a kind of furnace that converts three-phase power frequency current into single-phase medium frequency current through frequency converter. Medium frequency current will generate magnetic field when passing through spiral rectangular copper tube. Metal will generate eddy current through electromagnetic field induction, and eddy current will flow inside metal to generate heat, so as to achieve the purpose of metal heating and even melting.
Parameters of small induction smelting furnace:
model | 25 | 30 | 35 | 45 | 70 | 90 | 110 | 170 |
Power | 25KW | 30KW | 35KW | 45KW | 70KW | 90KW | 110KW | 170KW |
Input current | 36A | 47A | 57A | 80A | 110A | 140A | 160A | 240A |
DC voltage | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
input voltage | 380V 50-60HZ | |||||||
Oscillation frequency | 1KHZ-20KHZ | |||||||
Connecting linemm² | 8 | 10 | 16 | 35 | 50 | 75 | 90 | 120 |
Control switch | 40A | 60A | 80A | 120A | 150A | 225A | 225A | 300A |
ground wire mm² | 2mm2 | |||||||
Cooling water pressure | ≥0.2MPa | |||||||
Cooling water flow | ≥10L/Min | ≥2151/Min | ≥220L/Min |
Advantages of small induction melting furnace:
1. Small induction smelting furnace is used for smelting steel, stainless steel, copper, gold, silver and other materials.
2. Small induction smelting furnace has good electromagnetic stirring effect, which is conducive to uniform temperature and structure of molten metal, scum and impurities reduction.
3. The frequency range is wide. From 1KHZ-20KHZ, the induction coil can be designed by comprehensively considering the smelting amount, electromagnetic stirring, heating efficiency and other factors. The compensation capacitance determines the output frequency.
4. It can save at least 20% energy compared with silicon controlled medium frequency.
5. The equipment is small in size and light in weight. The smelting capacity is from 1kg to 200kg, which is suitable for both factory production and material test in schools and research institutes.
