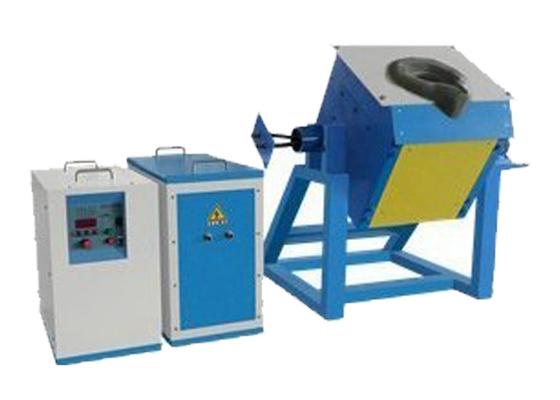

Product overview of small induction melting furnace:
Small high-frequency intermediate frequency smelting furnace, with fast melting speed, no open fire, low consumption, energy saving and environmental protection, small size, simple operation, no dust, no loss, harmless to the body, safe and reliable. It can be used without debugging and directly connecting electricity and water, and the machine operation is very simple in 5 minutes; It is applicable to the smelting of iron, steel, copper, aluminum, zinc and the melting of various precious metals such as gold and silver. It is used in university laboratories, research institutes, hand decoration processing, mold factories, metal processing enterprises, casting processing, small smelting processing, small batch production, personal manual workshop production, school smelting experiment, scientific research institutions smelting experiment, precious metal purification, gold and silver bar production and other occasions, completely solving the problems of coke heating The disadvantages of the original smelting process, such as gas heating, are ideal equipment for a new generation of metal smelting.
Parameters of small induction smelting furnace:
model | 30 | 35 | 40 | 45 | 70 | 90 | 110 | 170 |
Power | 30KW | 35KW | 40KW | 45KW | 70KW | 90KW | 110KW | 170KW |
Input current | 36A | 47A | 57A | 80A | 110A | 140A | 160A | 240A |
DC voltage | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
input voltage | 380V 50-60HZ | |||||||
Oscillation frequency | 1KHZ-20KHZ | |||||||
Connecting linemm² | 8 | 10 | 16 | 35 | 50 | 75 | 90 | 120 |
Control switch | 40A | 60A | 80A | 120A | 150A | 225A | 225A | 300A |
ground wire mm² | 2mm2 | |||||||
Cooling water pressure | ≥0.2MPa | |||||||
Cooling water flow | ≥10L/Min | ≥2151/Min | ≥220L/Min |
Advantages of small induction melting furnace:
1. Small induction melting furnace for fast melting and low production cost; Small pollution, meeting environmental requirements;
2. The shell of small induction smelting furnace is made of cast aluminum alloy or steel shell, which occupies a small area; The furnace body is easy to overturn, and electric, manual, hydraulic, etc. can be selected as required
3. Small induction melting furnace can start melting directly from the cold furnace, and all solutions can be emptied, so it is convenient to change the type of molten materials;
4. The small induction melting furnace has designed an inverter angle automatic adjustment circuit, which can automatically adjust the matching of load impedance to achieve constant power output. It does not need to adjust the compensation capacitance to operate in a good state
5. Small induction smelting furnace adopts sweep frequency zero voltage soft start mode, which can be started or stopped at any time under any state, without impact on power supply
6. The power of small induction smelting furnace can be adjusted flexibly, conveniently and continuously; The temperature is uniform and easy to control, the oxidation burning loss is less, and the metal composition is uniform;
