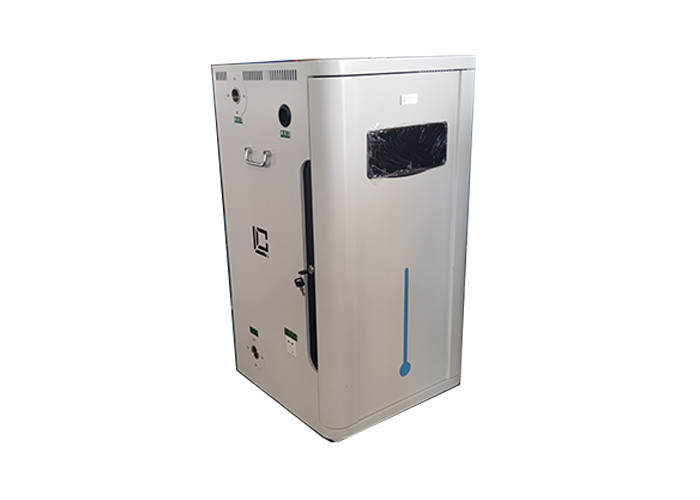

Intelligent 20kw Electric Boiler , Electric Whole House Boiler Constant Temperature
discussible
MOQ
discussible
Price
Intelligent 20kw Electric Boiler , Electric Whole House Boiler Constant Temperature
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, Liaoning, China
Brand Name: lincheng
Model Number: LC-L-20kw
High Light:

Intelligent 20kw Electric Boiler

,

Constant Temperature 20kw Electric Boiler

,

20kw Electric Whole House Boiler

Payment & Shipping Terms
Packaging Details: Wooden case packing
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Power: LC-20kw
Heating Area: 150-300㎡
Input Voltage: 380V
Outlet Water Temperature: 5℃-85℃
Overall Dimension (length * Width * Height): 900mm*490mm*490mm
Access Interface: DN32
Colour: Green White
Cross Sectional Area Of Power Line: ≥10
Product Description

Intelligent Constant Temperature Water Electricity Separation Of Electric Heater Boiler Electromagnetic Heating Furnace



Electric Heater Boiler 20kW Heating Area: 200-300 ㎡ Heater Boiler

Working principle of electric heater boiler:

The electric heater boiler can also be called the electromagnetic heating furnace. Its core principle is to use the electromagnetic principle, using the heat energy generated by the eddy current generated by the magnetic wire cutting metal as the heat source, through the heat emission system, to achieve the purpose of heating the heat generation equipment.


Electric Heater Boiler Technical Parameter:

Serial number Product model Company LC-L-20kw LC-L-30kw
1 Rated power KW 20 30
2 Rated current A 30.4 45.6
3 Heating area 150-300 300-400
4 input voltage 50HZ 380V 380V
5 Minimum flow of water pump configuration L/min 32 36
6 Hot water yield 50 ℃ L/min 5.62 13.8
7 Design thermal efficiency 98% 98%
8 Maximum water temperature 85 85
9 Low temperature protection temperature 5 5
10 Overall dimension (length * width * height) mm 490*490*900 490*490*900
11 Water inlet and outlet interface DN 32 40


Characteristics Of Eectric Heater Boiler:
   1,The working mode of electric heater boiler is flexible and can be set to manual or automatic mode.
   2,The electric heater boiler is controlled by fully automatic intelligent control technology, without personnel on duty.
   3,The electric heater boiler occupies a small area and saves space.
   4,The electric heater boiler operates in an environment-friendly manner, without noise and pollution, with high thermal efficiency (thermal efficiency greater than 95%) and small heat dissipation loss.
   5,The electric heater boiler can ensure that the feed water pump and circulating pump can be started or stopped automatically when the load changes, and can also be controlled manually.


Working Principle Of Electric Boiler:
  The core of the electromagnetic boiler technology is the heat generation equipment that uses the electromagnetic principle and uses the heat generated by the eddy current generated by the wire of magnetic force cutting metal as the heat source and passes through the heat emission system (such as the water heating system) to achieve the purpose of heating. The technical principle of electromagnetic boiler is to convert 50Hz medium frequency power supply into 20000hz high frequency power supply, and there is no noise after the equipment is started. When used, it does not release any harmful gas, no fire, smokeless and tasteless, without many pollution problems of traditional heating equipment, and will not produce open fire in the heating process, so as to truly achieve the effect of environmental protection and energy saving.
