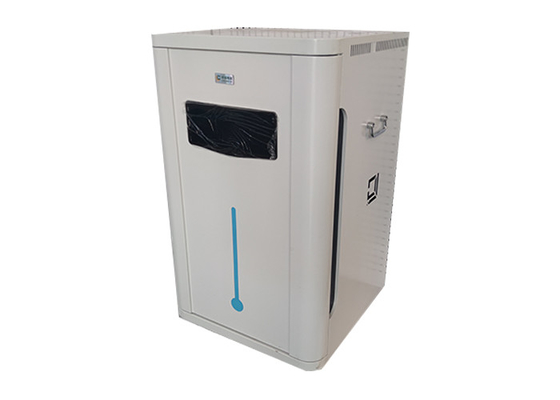

Small Floor Type Electric Heater Boiler Constant Temperature Control Heating Of Electric Heating Boiler
Overview of electric heater boiler products:
The electric heater boiler heats cold water through high-frequency magnetic field reaction. The heating efficiency is 98%, the outlet water temperature can reach 85 degrees, and the indoor temperature can reach more than 30 degrees. It can stably heat in an environment of minus 60 degrees in winter. It can match floor heating, radiator, fan plate and other heat dissipation terminals. It is widely used in rural residential, enterprises and institutions, industrial and commercial buildings and other places.
Electric Heater Boiler Technical Parameter:
| Serial number | Product model | Company | LC-L-20kw | LC-L-30kw |
| 1 | Rated power | KW | 20 | 30 |
| 2 | Rated current | A | 30.4 | 45.6 |
| 3 | Heating area | ㎡ | 150-300 | 150-400 |
| 4 | input voltage | 50HZ | 380V | 380V |
| 5 | Minimum flow of water pump configuration | L/min | 32 | 36 |
| 6 | Hot water yield 50 ℃ | L/min | 5.62 | 13.8 |
| 7 | Design thermal efficiency | ℃ | 98% | 98% |
| 8 | Maximum water temperature | ℃ | 85 | 85 |
| 9 | Low temperature protection temperature | ℃ | 5 | 5 |
| 10 | Overall dimension (length * width * height) | mm | 490*490*900 | 490*490*900 |
| 11 | Water inlet and outlet interface | DN | 32 | 40 |
Advantages of electric heater boiler products:
1. It is green, environment-friendly and pollution-free. It is a clean heating method. Clean energy is used, and there is no dust, toxic gas emission, noise, odor, and pollution in the heating process.
2. Less heat loss, energy saving and high efficiency. Clean energy is used, and there is no dust, toxic gas emission, noise, odor, and pollution in the heating process.
3. Water and electricity separation, multiple protection, safe use more assured. The water and electricity are separated, with overtemperature protection, over-current protection, and dry burning protection. There is no need to worry about the leakage risk when using.
4. It can be opened and closed at any time, and can be heated in different periods, with intelligent temperature control. With chip temperature sensing control technology, it can intelligently adjust the temperature. Turn on and off at any time to realize heating in different periods, which not only improves heating experience but also saves electricity.
5. It has no requirements for the use environment and has strong adaptability. The electromagnetic heating furnace has no requirements for climate conditions, and has no restrictions on altitude, temperature and latitude. It is more adaptable than other heating methods.
