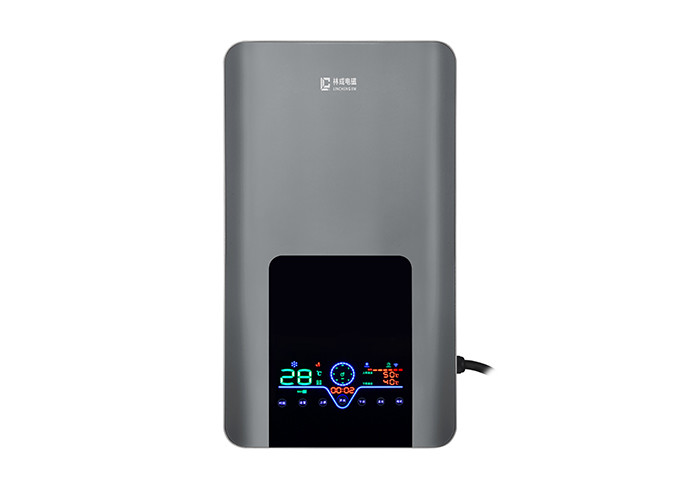

Wall Mounted Electric Boiler wall mount metal enclosure wall mount weatherproof enclosur
Advantages Of Wall Mounted Electric Boiler:
1. Compared with the coal stove for heating, it is close to using coal for financing and completely eliminates indoor pollution, gas poisoning, scald and other accidents. Let alone move up and down. Over temperature safety protection and double leakage protection are adopted, especially for the elderly and children at home.
2, strong practicability: both urban and rural, bungalow buildings can be installed and used. It is very suitable for township families.
3. Open 0 pressure heating is adopted to ensure the natural adjustment of temperature and humidity in the room. Heating is not dry in winter.
4. Electric heating furnace is a household appliance for heating and hand washing in winter for families, hotels, hotels, school classrooms and collective dormitories. Advantages of electric heating furnace compared with other heating furnace equipment.
5. Compared with air conditioners and other electric heaters, it has higher heating efficiency and better thermal stability. Its use cost is lower, and there is no motor noise and air pollution. There is no sense of blowing and erosion to people when the wind is circulating, and no pathogenic microorganisms are parasitic. Easy to clean, easy to maintain, maintenance free.
Wall Mounted Electric Boiler Product Parameters:
Serial number | Product model | Company | LC-B-6kw | LC-B-8kw | LC-B-10kw | LC-B-12kw | LC-B-15kw |
one | Rated power | KW | 6 | 8 | 10 | 12 | 15 |
two | Rated current | A | 27.3 | 36.4 | 45.5 | 48.2 | 52.8 |
three | Heating area | ㎡ | 60-80 | 80-100 | 100-120 | 120-140 | 150-180 |
four | input voltage | 50HZ | 220V | 220V | 220V | 220V/380V | 220V/380V |
five | Minimum flow of water pump configuration | L/min | 15 | 15 | 20 | 20 | 25 |
six | Hot water yield 50 ℃ | L/min | 5.62 | 3.75 | 4.69 | 5.62 | 6.9 |
seven | Design thermal efficiency | ℃ | 98% | 98% | 98% | 98% | 98% |
eight | Maximum water temperature | ℃ | 85 | 85 | 85 | 85 | 85 |
nine | Low temperature protection temperature | ℃ | 5 | 5 | 5 | 5 | 5 |
ten | Overall dimension (length * width * height) | mm | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 |
13 | Water inlet and outlet interface | DN | 32 | 32 | 32 | 32 | 32 |
Features Of Wall Mounted Electric Boiler:
The wall mounted electric boiler adopts microcomputer chip and intelligent control. It is equipped with leakage protection and dry burning protection functions. It is pollution-free, green and environmental friendly, and water heating is not dry. At the same time, it has the characteristics of small volume, light weight and simple operation.
