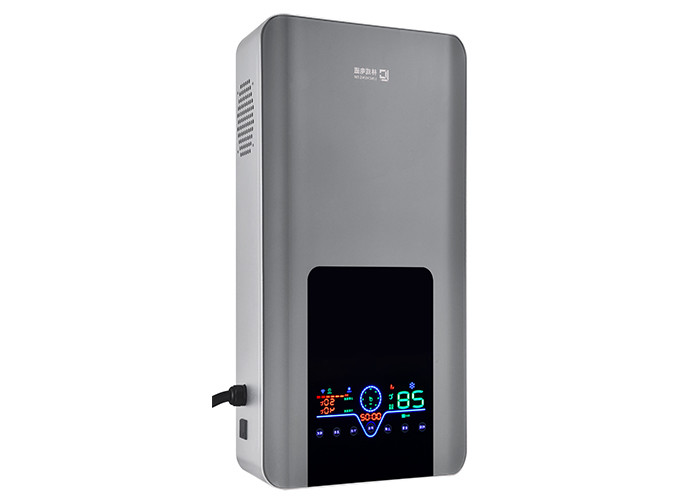

Wall Mounted Electric Boiler Water Temperature Up To 98 ℃ Electric Heating Mode
Application field of wall mounted electric boiler:
The well-known heating of residential buildings, schools, units and so on are all examples of electromagnetic boilers heating large buildings or small buildings. In addition to heating, hot water and warm water can also be provided. For example, the bathing water in bathrooms, hotels and other places, as well as the constant temperature water in some farms and vegetable greenhouses in winter
Wall Mounted Electric Boiler Product Parameters:
| Serial number | Product model | Company | LC-B-6kw | LC-B-8kw | LC-B-10kw | LC-B-12kw | LC-B-15kw |
| one | Rated power | KW | 6 | 8 | 10 | 12 | 15 |
| two | Rated current | A | 27.3 | 36.4 | 45.5 | 48.2 | 52.8 |
| three | Heating area | ㎡ | 60-80 | 80-100 | 100-120 | 120-140 | 150-180 |
| four | input voltage | 50HZ | 220V | 220V | 220V | 220V/380V | 220V/380V |
| five | Minimum flow of water pump configuration | L/min | 15 | 15 | 20 | 20 | 25 |
| six | Hot water yield 50 ℃ | L/min | 5.62 | 3.75 | 4.69 | 5.62 | 6.9 |
| seven | Design thermal efficiency | ℃ | 98% | 98% | 98% | 98% | 98% |
| eight | Maximum water temperature | ℃ | 85 | 85 | 85 | 85 | 85 |
| nine | Low temperature protection temperature | ℃ | 5 | 5 | 5 | 5 | 5 |
| ten | Overall dimension (length * width * height) | mm | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 |
| 13 | Water inlet and outlet interface | DN | 32 | 32 | 32 | 32 | 32 |
Installation Of Wall Mounted Electric Boiler:
Intelligent electric heating furnace is a heating equipment commonly used in winter. It is energy-saving and environmental protection, automatic temperature control, dry burning prevention and leakage protection. When installing the intelligent electric heating furnace, professional personnel shall be selected to install it according to the construction standards to avoid potential safety hazards caused by wrong installation.
