Wall Mounted Electric Product Parameters:
NO. | Product model | Unit | LC-B-6kw | LC-B-8kw | LC-B-10kw | LC-B-12kw | LC-B-15kw |
1 | Rated power | KW | 6 | 8 | 10 | 12 | 15 |
2 | Rated current | A | 27.3 | 36.4 | 45.5 | 48.2 | 52.8 |
3 | Heating area | ㎡ | 60-80 | 80-100 | 100-120 | 120-140 | 150-180 |
4 | input voltage | 50HZ | 220V | 220V | 220V | 220V/380V | 220V/380V |
5 | Minimum flow of water pump configuration | L/min | 15 | 15 | 20 | 20 | 25 |
6 | Hot water yield 50 ℃ | L/min | 5.62 | 3.75 | 4.69 | 5.62 | 6.9 |
7 | Design thermal efficiency | ℃ | 98% | 98% | 98% | 98% | 98% |
8 | Maximum water temperature | ℃ | 85 | 85 | 85 | 85 | 85 |
9 | Low temperature protection temperature | ℃ | 5 | 5 | 5 | 5 | 5 |
10 | Size (length * width * height) | mm | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 |
11 | Water inlet and outlet interface | DN | 32 | 32 | 32 | 32 | 32 |

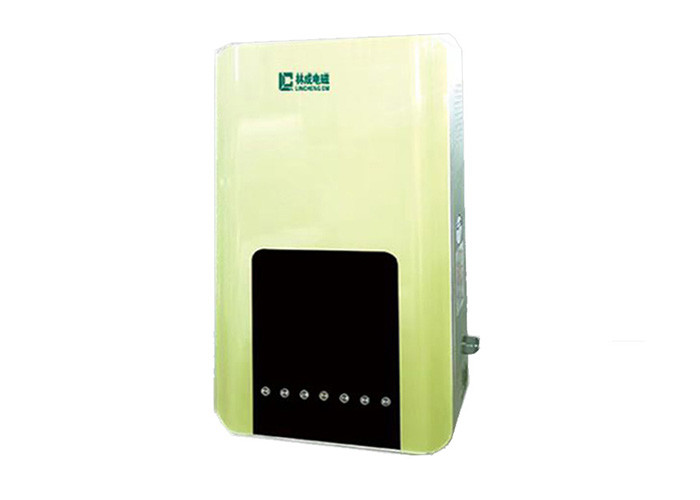

Product Details:
Why choose us ?
Wall Mounted Electric Advantages:
The electromagnetic wire is copper wire with a long half-life cycle, and the heat conversion rate can reach 98%. At the same time, the annual heat conversion rate hardly decreases; The heating core adopts electromagnetic induction heating, and the water is magnetized after heating, so the magnetized water is not easy to scale, and the service life can reach 15-20 years; 100% separation of water and electricity, fully avoiding the potential leakage hazards of boiler equipment, so that users have better safety protection; Intelligent design, convenient operation, remote control with mobile phones and computers, heating time and temperature can be set arbitrarily; At the same time, the equipment can provide direct heating and energy storage heating, making full use of peak valley average electricity price to greatly reduce operating costs; It has little demand for external environment, and can be used for heating and hot water in many places such as high-altitude and cold regions
Wall Mounted Electric Mainly Applicable To:
Electric heating, hot water and industrial steam are used in factory workshops, office buildings, schools, hotels, hospitals, greenhouses, administrative units, offices, villas, residential quarters, bathing centers, swimming pools, etc.
Wall Mounted Electric Working Principle:
Using the principle of electromagnetic induction, the heater that converts electric energy into heat energy will convert 50Hz AC voltage into DC voltage by rectifier circuit in the controller, and then convert DC voltage into high-frequency AC voltage with frequency of 22khz through control circuit;
The high-frequency AC voltage flows through the high-frequency wire wound outside the non-metallic material pipe, and the magnetic lines of force generated inside the high-speed changing magnetic field produce countless small eddy currents when cutting the metal container inside the non-metallic material pipe, so that the water can be heated quickly to achieve the effect of rapid heating of water.
