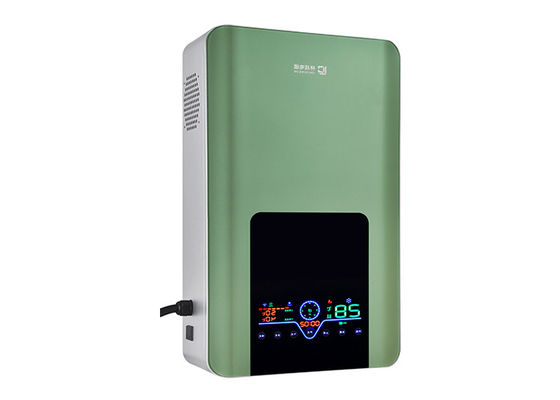

Wall Mounted Electric Boiler The Electric Hot Water Boiler Is Safe And Reliable
What Is A Wall Mounted Dlectric Boiler:
The frequency conversion electromagnetic heating furnace realizes the microcomputer intelligent whole process automatic control, supports PLC programmable operation, supports RS485 communication, and supports mobile phone WiFi remote control. It can customize the heating temperature and heating time according to the actual needs of users, so as to achieve the real timing and temperature, and make the heating operation more convenient in winter
Wall Mounted Electric Boiler Product Parameters:
Serial number | Product model | Company | LC-B-6kw | LC-B-8kw | LC-B-10kw | LC-B-12kw | LC-B-15kw |
one | Rated power | KW | 6 | 8 | 10 | 12 | 15 |
two | Rated current | A | 27.3 | 36.4 | 45.5 | 48.2 | 52.8 |
three | Heating area | ㎡ | 60-80 | 80-100 | 100-120 | 120-140 | 150-180 |
four | input voltage | 50HZ | 220V | 220V | 220V | 220V/380V | 220V/380V |
five | Minimum flow of water pump configuration | L/min | 15 | 15 | 20 | 20 | 25 |
six | Hot water yield 50 ℃ | L/min | 5.62 | 3.75 | 4.69 | 5.62 | 6.9 |
seven | Design thermal efficiency | ℃ | 98% | 98% | 98% | 98% | 98% |
eight | Maximum water temperature | ℃ | 85 | 85 | 85 | 85 | 85 |
nine | Low temperature protection temperature | ℃ | 5 | 5 | 5 | 5 | 5 |
ten | Overall dimension (length * width * height) | mm | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 |
13 | Water inlet and outlet interface | DN | 32 | 32 | 32 | 32 | 32 |
Power Consumption Of Wall Mounted Electric Boiler:
The power consumption of the wall mounted electric boiler is low, and it does not work all the time for 24 hours. Because the variable-frequency constant temperature technology and intelligent temperature control technology are adopted, when the outlet water temperature reaches the set temperature, the full power heating will be stopped, and then the low-power insulation mode will be started; If the indoor heat is lost, when the water temperature is lower than the set temperature, the heating mode will be turned on again to continue to maintain the set water temperature.
