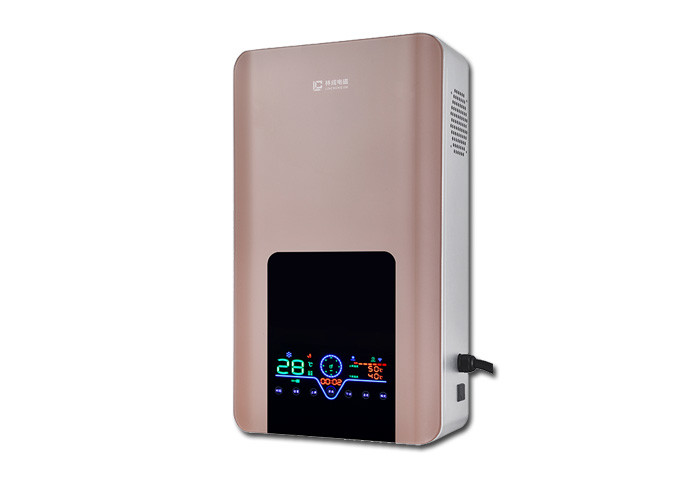

Wall Mounted Electric Boiler Product Parameters:
NO. | Product model | Unit | LC-B-6kw | LC-B-8kw | LC-B-10kw | LC-B-12kw | LC-B-15kw |
1 | Rated power | KW | 6 | 8 | 10 | 12 | 15 |
2 | Rated current | A | 27.3 | 36.4 | 45.5 | 48.2 | 52.8 |
3 | Heating area | ㎡ | 60-80 | 80-100 | 100-120 | 120-140 | 150-180 |
4 | input voltage | 50HZ | 220V | 220V | 220V | 220V/380V | 220V/380V |
5 | Minimum flow of water pump configuration | L/min | 15 | 15 | 20 | 20 | 25 |
6 | Hot water yield 50 ℃ | L/min | 5.62 | 3.75 | 4.69 | 5.62 | 6.9 |
7 | Design thermal efficiency | ℃ | 98% | 98% | 98% | 98% | 98% |
8 | Maximum water temperature | ℃ | 85 | 85 | 85 | 85 | 85 |
9 | Low temperature protection temperature | ℃ | 5 | 5 | 5 | 5 | 5 |
10 | Overall dimension (length * width * height) | mm | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 |
11 | Water inlet and outlet interface | DN | 32 | 32 | 32 | 32 | 32 |
Product Details:
Why choose us ?
How To Choose The Right Wall Mounted Electric Boiler:
The selection of the wall mounted electric boiler is different according to the heating building area, building structure, radiator type, room temperature requirement and location of the user. When buying an electric boiler, we should not only consider the price of the electric boiler, but also consider the practicality, and analyze it according to the specific indoor conditions. The power of the wall mounted electric boiler can be inferred according to the size of the house area and whether it is necessary to supply hot water, so as not to blindly follow the trend and cause waste or loss of resources.
Wall Mounted Electric Boiler 98% Thermal Efficiency:
The wall mounted electric boiler furnace is an energy converter, which uses electromagnetic heating to operate. The technology adopted is electromagnetic induction heating technology. By converting 50Hz power frequency electricity into about 20Hz high-frequency alternating current, when the iron containing container is placed on the top, the alternating magnetic line is cut to generate alternating current (i.e. eddy current) on the container metal. The eddy current makes the iron atoms on the container move at high speed and irregularly, and the atoms collide with each other Heat energy is generated by friction to heat the water in the pipe or container. The heated medium is transported to the terminal or the heating and cooling equipment through the pipe, and is heated to the required temperature.
The wall mounted electric boiler has a water immersed furnace body, which is more safe with super energy protection. The Infineon module imported from Germany enables the thermal efficiency to reach more than 98%. The high-frequency electromagnetic induction furnace works at the frequency of 20000hz, and the electric energy conversion rate is high, which is 30% - 50% higher than that of the flame furnace and 20% - 30% higher than that of the resistance furnace. The heating temperature is high and the time is short, and the heat production per unit time is high. Full computer touch screen control, low operating cost,
What are The Advantages Of Lincheng Wall Mounted Electric Boiler:
1. Strong controllability. Easy operation, intelligent control, no need for special personnel to be on duty, set the time period and temperature as required.
2. Environmental protection. Use clean electric energy without noise, dust and odor.
3. High safety performance. 100% water and electricity separation, fault self inspection, anti freezing, anti dry burning, anti magnetic leakage and other protection.
4. Strong durability. When heating, the high-frequency wire is not hot. The design life of the core component frequency converter is long, and the service life of the whole machine is relatively long.
5. Simple safety maintenance. Connect the inlet and outlet pipes and the power supply respectively, and install the single magnetized water system without maintenance,
6. High comfort. The outlet water temperature can be as high as 90 degrees, the water temperature is automatically controlled, and the heating mode is adjusted with one key, which is comfortable and pleasant.
7. Wide range of use. The installed power is small, and it is used in all places that need heating and heating water.
Lincheng wall mounted electric boiler has the advantages of high integration, small floor area and convenient construction. The product is energy-saving, convenient and safe. It is the best choice for heating, bathing and domestic hot water supply for government organs, schools, hospitals, hotels, factories and mining enterprises and ordinary families.
