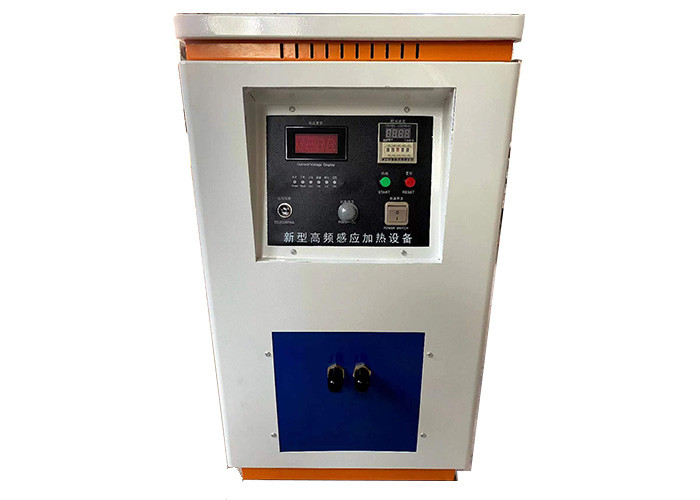

Medium Frequency Induction Heating Medium Frequency Brazing Furnace
Current situation of medium frequency induction heating:
The medium frequency induction heating device has the advantages of small volume, light weight, high efficiency, excellent thermal processing quality and favorable environment. It is rapidly eliminating coal-fired furnace, gas furnace, oil fired furnace and ordinary resistance furnace. It is a new generation of metal heating equipment.
Medium frequency induction heating is the main equipment in the casting, forging and heat treatment workshop. Its stability, reliability and safety are the guarantee for the normal and stable operation of the casting, forging and heat treatment production line of the flow line.
Parameters of small induction smelting furnace:
model | 15 | 25 | 35 | 45 | 70 | 90 | 110 | 160 |
Power | 15KW | 25KW | 35KW | 45KW | 70KW | 90KW | 110KW | 160KW |
Input current | 18A | 36A | 57A | 80A | 110A | 140A | 160A | 240A |
DC voltage | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
input voltage | 380V 50-60HZ | |||||||
Oscillation frequency | 1KHZ-20KHZ | |||||||
Connecting linemm² | 10 | 10 | 16 | 35 | 50 | 75 | 90 | 120 |
Control switch | 50A | 60A | 80A | 120A | 150A | 225A | 225A | 300A |
ground wire mm² | 2mm2 | |||||||
Cooling water pressure | ≥0.2MPa | |||||||
Cooling water flow | ≥10L/Min | ≥2151/Min | ≥220L/Min |
Characteristics Of Medium Frequency Induction Heating Equipment:
1. High efficiency, environmental protection and energy saving: higher frequency than rectifier tube can save 2 / 3 of power
2. Especially light: only 16-40kg trunk size
3. Low maintenance cost: no vulnerable and expensive rectifier tube
4. Especially safety: no high voltage, avoiding the risk of high voltage electric shock
5. Easy installation and operation: only external power supply and water pipe can be connected for 10 minutes
6. Practical operation is convenient: you can learn it in a few minutes
