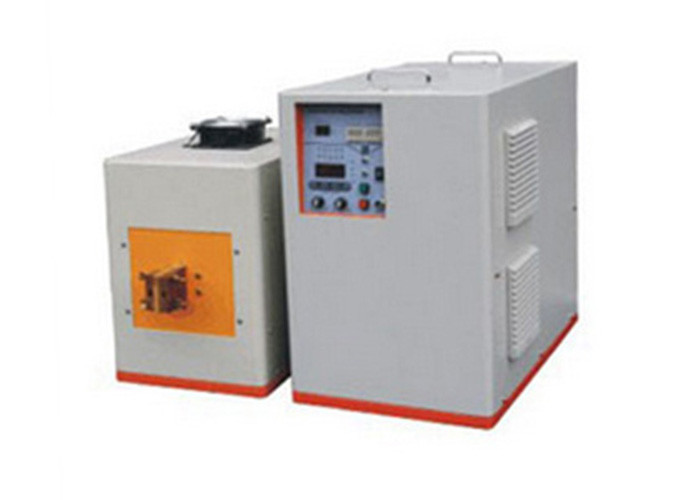

Electric Medium Frequency Induction Heating Equipment For Smelting Steel Alloy Material
discussible
MOQ
discussible
Price
Electric Medium Frequency Induction Heating Equipment For Smelting Steel Alloy Material
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, China
Brand Name: lincheng
Model Number: LC-ZP-70
High Light:

Alloy Medium Frequency Induction Heating Equipment

,

Steel Medium Frequency Induction Heating Equipment

,

steel induction heater

Payment & Shipping Terms
Packaging Details: Wooden case packaging
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Model: LC-ZP-70
Power: 70KW
Heating Mode: Electric Heating
Application Area: Smelting Steel, Alloy Steel, Special Steel, Cast Iron And Other Ferrous Metal Materials
Colour: White
Heating Power: 20KW—800KW
Product Description

Medium Frequency Induction Heating Equipment Medium Frequency Induction Furnace Rf Induction Heating



Saving Features Of Medium Frequency Induction Heating Equipment:

    The heating speed is fast, the production efficiency is high, the oxidation decarbonization is small, and the cost of materials and forging dies is saved. Since the principle of medium frequency induction heating is electromagnetic induction, its heat is generated in the workpiece itself. Ordinary workers can carry out continuous work of forging tasks within ten minutes after working with the medium frequency induction heating equipment. It is not necessary for professional workers to burn and seal the furnace in advance. There is no need to worry about the waste of the billet heated by the coal furnace due to power failure or equipment failure. Due to the fast heating speed of this heating method, there is little oxidation. Compared with the coal burning furnace, each ton of forgings can save at least 20-50kg of steel raw materials, and its material utilization rate can reach 95%. Because the heating method is uniform and the temperature difference between the core and the surface is extremely small, the service life of the forging die is greatly increased in forging, and the roughness of the forging surface is less than 50um.

Parameters of small induction smelting furnace:

model 15 25 35 45 70 90 110 160
Power 15KW 25KW 35KW 45KW 70KW 90KW 110KW 160KW
Input current 18A 36A 57A 80A 110A 140A 160A 240A
DC voltage 550V 550V 550V 550V 550V 550V 550V 550V
input voltage 380V 50-60HZ
Oscillation frequency 1KHZ-20KHZ
Connecting linemm² 10 10 16 35 50 75 90 120
Control switch 50A 60A 80A 120A 150A 225A 225A 300A
ground wire mm² 2mm2
Cooling water pressure ≥0.2MPa
Cooling water flow ≥10L/Min ≥2151/Min ≥220L/Min



Characteristics Of Medium Frequency Induction Heating Equipment:

1. Simple production operation, flexible feeding and discharging, high automation, and online production.

2. The workpiece has fast heating speed, less oxidation decarburization, high efficiency and good forging quality.

3. The heating length, speed and temperature of the workpiece can be precisely controlled.

4. The workpiece is heated evenly, the core surface temperature difference is small, and the control accuracy is high.

5. The sensor can be elaborately made according to customer requirements.

6. Comprehensive energy-saving optimization design, low energy consumption, high efficiency, and lower production cost than coal burning.

7. It meets the requirements of environmental protection, has little pollution, and reduces the labor intensity of workers.
