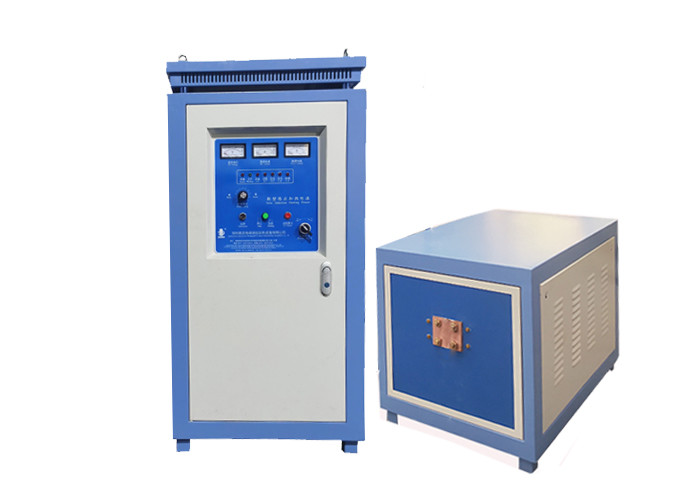

Medium Frequency Induction Heating Equipment Metal Forging Melting Heating Quenching Diathermy Equipment
Features of intermediate frequency induction heating equipment:
Intermediate frequency induction heating equipment refers to the overall penetration type before metal thermal deformation or heat treatment. It is a power supply device that converts the power frequency 50Hz alternating current into the intermediate frequency (above 300Hz to 20kHz). It rectifies the three-phase power frequency alternating current and converts it into direct current, and then converts the direct current into adjustable intermediate frequency current to supply the intermediate frequency alternating current flowing through the capacitor and induction coil, generating high-density magnetic lines of force in the induction coil, And cutting the metal material contained in the induction coil, which generates a large eddy current in the metal material.
Technical parameters of high frequency induction heating equipment:
Model: LC-ZP-130KW
Maximum input current: 130A
Input power: 130kW
Oscillation frequency: 12khz
Input voltage: 360v
Host volume:353mm×353mm×483mm
Cooling water pressure: 0.1-0.3mpa
Cooling water flow (main engine): 15L / min (0.1MPa)
Cooling water flow (transformer): 18L / min (0.1MPa)
Water temperature protection point: 50 ℃
Host weight: 40 ± 5% kg
Efficiency: 90%
Features of intermediate frequency induction heating equipment:
(1) Medium frequency induction heating equipment has high melting efficiency, good power saving effect, compact structure and strong overload capacity
(2) The medium frequency induction heating equipment has low ambient temperature, less dust and good working environment.
(3) The operation process is simple and the smelting operation is reliable.
(4) The metal composition is uniform.
(5) Medium frequency induction heating equipment has fast temperature rise, easy furnace temperature control and high production efficiency.
(6) The medium frequency induction heating equipment has high utilization rate and is convenient to change varieties.
(7) The long arc-shaped yoke shields magnetic leakage and reduces external magnetic resistance, has magnetic leakage at both ends of the shielded coil, and has an arc-shaped cross section. The inner side of the yoke is seamlessly adhered to the outer wall, which increases the effective magnetic permeability area and provides better support for the lower ring. The unique forward and reverse rotation coils greatly improve the efficiency of the system.
