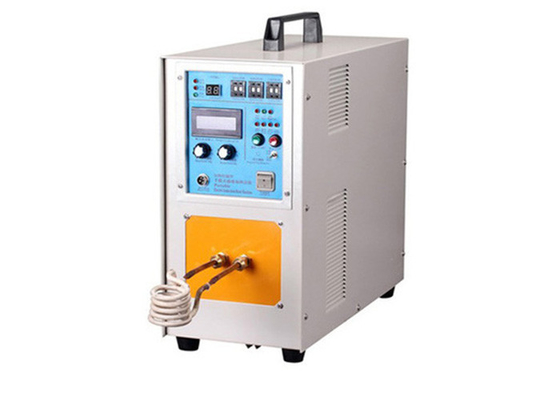

Medium Frequency Induction Heating Equipment High Frequency Induction Heating Machine Induction Hardening Equipment
Working Principle Of Medium Frequency Induction Heating Equipment:
The working principle of the medium frequency induction heating equipment is to place a metal cylinder in an induction coil with alternating medium frequency current. The metal cylinder is not in direct contact with the induction coil. The temperature of the energizing coil itself is very low, but the surface of the cylinder is heated to reddening or even melting. Moreover, the reddening and melting speed can be realized as long as the frequency and current are adjusted.
Parameters of small induction smelting furnace:
model | 15 | 25 | 35 | 45 | 70 | 90 | 110 | 160 |
Power | 15KW | 25KW | 35KW | 45KW | 70KW | 90KW | 110KW | 160KW |
Input current | 18A | 36A | 57A | 80A | 110A | 140A | 160A | 240A |
DC voltage | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
input voltage | 380V 50-60HZ | |||||||
Oscillation frequency | 1KHZ-20KHZ | |||||||
Connecting linemm² | 10 | 10 | 16 | 35 | 50 | 75 | 90 | 120 |
Control switch | 50A | 60A | 80A | 120A | 150A | 225A | 225A | 300A |
ground wire mm² | 2mm2 | |||||||
Cooling water pressure | ≥0.2MPa | |||||||
Cooling water flow | ≥10L/Min | ≥2151/Min | ≥220L/Min |
Characteristics Of Medium Frequency Induction Heating Equipment:
1. Simple production operation, flexible feeding and discharging, high automation, and online production.
2. The workpiece has fast heating speed, less oxidation decarburization, high efficiency and good forging quality.
3. The heating length, speed and temperature of the workpiece can be precisely controlled.
4. The workpiece is heated evenly, the core surface temperature difference is small, and the control accuracy is high.
5. The sensor can be elaborately made according to customer requirements.
6. Comprehensive energy-saving optimization design, low energy consumption, high efficiency, and lower production cost than coal burning.
7. It meets the requirements of environmental protection, has little pollution, and reduces the labor intensity of workers.
