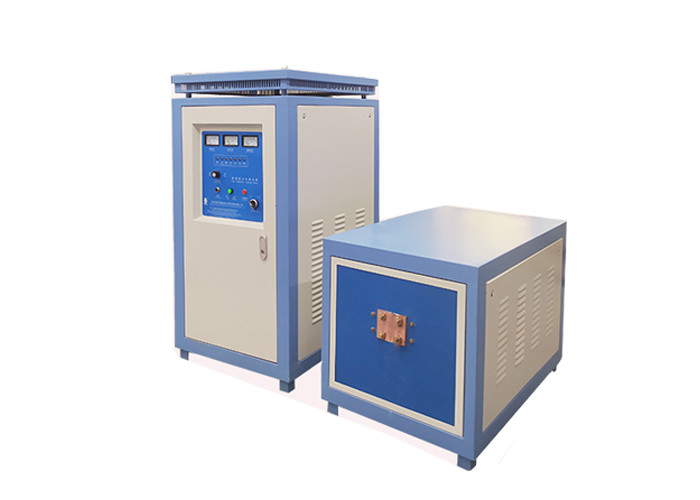

Medium Frequency Induction Heating Equipment Fast Heating Speed And High Production Efficiency
Product overview of intermediate frequency induction heating equipment:
High and medium frequency induction heating equipment with fast heating speed and high production efficiency adopts ZCS circuit to realize high-frequency and low loss IGBT inverter. Under the control of DSP, it can quickly and accurately track the change of load. The operation control, limit protection and other parameters of the device can be set online. After power failure, the set parameters are not lost, and the device can be set to continue to operate after power on.
Technical parameters of high frequency induction heating equipment:
Model: LC-ZP-115KW
Maximum input current: 115A
Input power: 115kW
Oscillation frequency: 10khz
Input voltage: 360v
Host volume: 350mm×350mm×480mm
Cooling water pressure: 0.1-0.3mpa
Cooling water flow (main engine): 15L / min (0.1MPa)
Cooling water flow (transformer): 18L / min (0.1MPa)
Water temperature protection point: 50 ℃
Host weight: 40 ± 5% kg
Efficiency: 90%
Advantages of medium frequency induction heating equipment:
1. Safe, low loss and high redundancy design -- high frequency and low loss IGBT inverter scheme
2. Multiple modes of uninterrupted operation - four modes of operation
3. Real time tracking protection - output circuit leakage current detection and protection function (optional)
4. Modular and humanized convenient design -- online parameter setting
