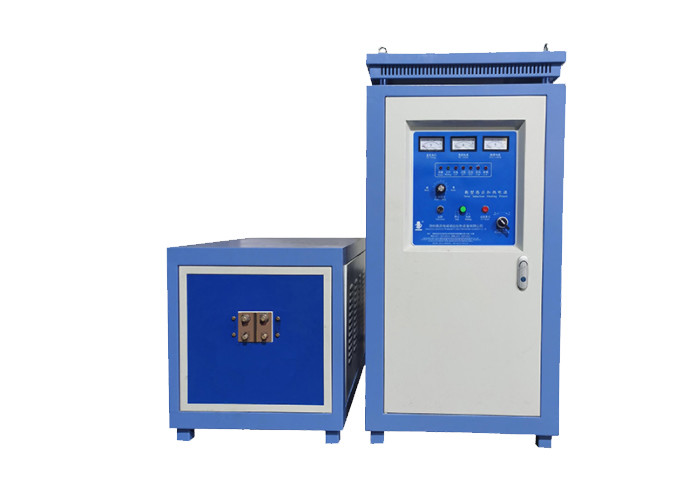

Medium Frequency Induction Heating Equipment Metal, Forging, Elbow, Heat Treatment Heating Equipment
Medium frequency induction heating equipment:
Medium frequency induction heating equipment has the advantages of small volume, light weight, high efficiency, excellent thermal processing quality and favorable environment. It is rapidly eliminating coal-fired furnaces, gas-fired furnaces, oil fired furnaces and ordinary resistance furnaces. It is a new generation of metal heating equipment.
Technical parameters of high frequency induction heating equipment:
Model: LC-ZP-125KW
Maximum input current: 125A
Input power: 125kW
Oscillation frequency: 12khz
Input voltage: 360v
Host volume: 352mm×352mm×482mm
Cooling water pressure: 0.1-0.3mpa
Cooling water flow (main engine): 15L / min (0.1MPa)
Cooling water flow (transformer): 18L / min (0.1MPa)
Water temperature protection point: 50 ℃
Host weight: 40 ± 5% kg
Efficiency: 90%
Features of intermediate frequency induction heating equipment:
(1) Medium frequency induction heating equipment has high melting efficiency, good power saving effect, compact structure and strong overload capacity
(2) The medium frequency induction heating equipment has low ambient temperature, less dust and good working environment.
(3) The operation process is simple and the smelting operation is reliable.
(4) The metal composition is uniform.
(5) Medium frequency induction heating equipment has fast temperature rise, easy furnace temperature control and high production efficiency.
(6) The medium frequency induction heating equipment has high utilization rate and is convenient to change varieties.
(7) The long arc-shaped yoke shields magnetic leakage and reduces external magnetic resistance, has magnetic leakage at both ends of the shielded coil, and has an arc-shaped cross section. The inner side of the yoke is seamlessly adhered to the outer wall, which increases the effective magnetic permeability area and provides better support for the lower ring. The unique forward and reverse rotation coils greatly improve the efficiency of the system.
