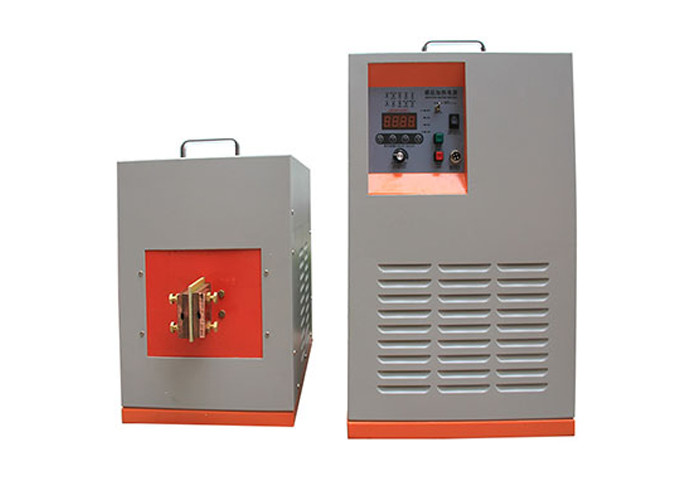

High Frequency Furnace Energy Metal Heating, Quenching, Annealing And Welding
Working principle of high frequency furnace:
High frequency furnace is also called high frequency induction furnace. It is a kind of induction furnace. Its working principle is that the three-phase power supply obtains 500VDC working voltage after rectification. Since the principle of high-frequency furnace is electromagnetic induction, its heat is generated in the workpiece itself. Ordinary workers can carry out continuous work of forging tasks after work. Unlike before, professional workers carry out furnace burning and furnace sealing in advance, saving time and labor.
Technical Parameters Of High Frequency Furnace:
| Serial number |
Product model |
output power |
Oscillation frequency |
output | Cooling water pressure |
water temperature |
| 1 | WGH-15 | 15Kw | 50-100KHz | 220V | 0.2Mpa | <40℃ |
| 2 | WGH-25 | 25Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
| 3 | WGH-35 | 35Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
| 4 | WGH-40 | 40Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
| 5 | WGH-60 | 60Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
| 6 | WGH-80 | 80Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
| 7 | WGH-100 | 100Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
| 8 | WGH-120 | 120Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
| 9 | WGH-160 | 160Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <41℃ |
| 10 | WGH-200 | 200Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <42℃ |
Advantages of high frequency furnace:
1. The installation is convenient and simple. It can be directly connected to the power supply, the water pipe and the induction ring.
2. Small floor area, small volume and easy to move.
3. Fast start-up, adjustable power, heating can be started after water and power are supplied, without preheating. And the output power is adjustable.
4. The heating effect is good and uniform, so that each part of the workpiece can obtain the required temperature.
5. Wide heating range, can heat a variety of workpieces.
6. The heating speed is very fast, saving time and labor.
7. It has no pollution, is good for the environment, and will not produce harmful gases, meeting the requirements of environmental protection and fire protection.
