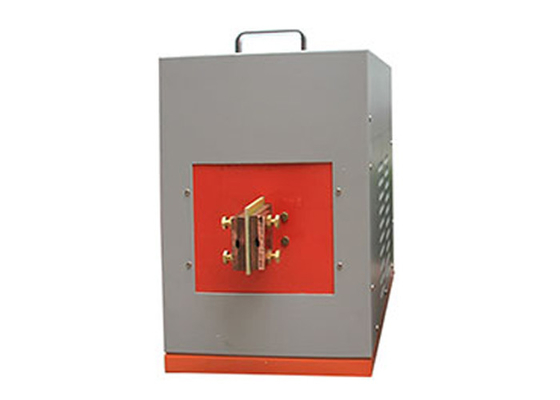

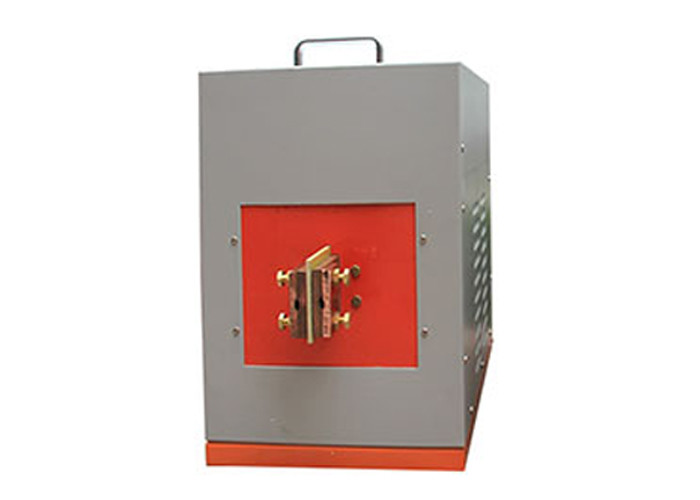

High Frequency Furnace
Introduction To High Frequency Furnace:
The high-frequency induction furnace is an advanced heating method, because the high-frequency power output is only available when the sample is burned. After the combustion is completed, the high-frequency induction will stop immediately. After the high-frequency furnace is started, the sample can be analyzed at any time without heating and preheating time. The high-frequency furnace has very excellent combustion performance. The carbon and sulfur conversion rates are higher than those of the tubular furnace. The carbon can be considered as nearly 100%, and the sulfur can be more than 99% according to the relevant information.
Technical Parameters Of High Frequency Furnace:
Serial number |
Product model |
output power |
Oscillation frequency |
output | Cooling water pressure |
water temperature |
1 | WGH-15 | 15Kw | 50-100KHz | 220V | 0.2Mpa | <40℃ |
2 | WGH-25 | 25Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
3 | WGH-35 | 35Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
4 | WGH-40 | 40Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
5 | WGH-60 | 60Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
6 | WGH-80 | 80Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
7 | WGH-100 | 100Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
8 | WGH-120 | 120Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
9 | WGH-160 | 160Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <41℃ |
10 | WGH-200 | 200Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <42℃ |
High frequency furnace application:
The frequency of the power supply used is above 10000hz, up to 1MHz. High frequency induction furnace needs frequency conversion equipment. The capacity of high-frequency induction furnace is generally below 100kg due to the limitation of power supply. High frequency induction furnace is mainly used for scientific research in laboratory. The high-frequency power supply equipment can be equipped with quenching equipment for surface quenching of mechanical parts in the heat treatment department.
