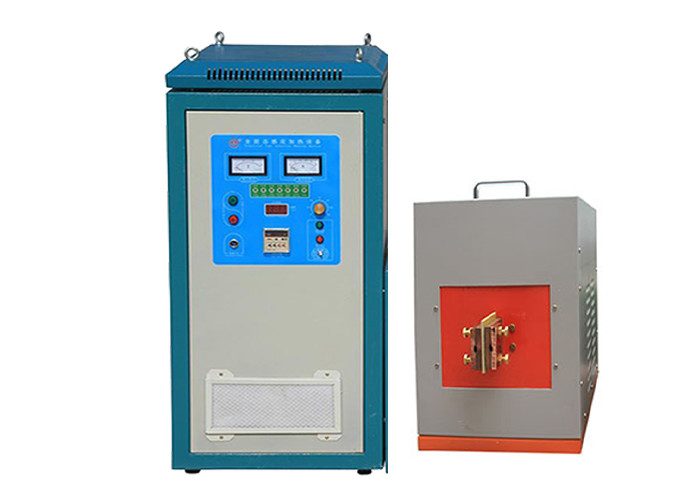

High Frequency Furnace High Frequency Induction Furnace Frequency Conversion Heating Equipment
Ntroduction To High Frequency Furnace:
The melting rate of the high-frequency furnace is high, and the power can be kept in the best frequency band during the melting process, which greatly eliminates the adverse effect of the new lining on the melting speed; High molten steel quality and high casting yield; The power factor is high. During the operation of the whole machine, the power factor can reach more than 97%, and will not interfere with the power grid.
The outstanding advantage of high-frequency furnace is its strong adaptability to samples, especially for special materials that are difficult to burn in tubular furnace and electric arc furnace, such as stainless steel, high chromium, high manganese steel, electrothermal alloy, intermediate alloy, pure metal (Ni, Co, Cu, etc.), ferrosilicon, ferrochrome, ore, slag, sinter, oil shale, graphite, tungsten carbide, rare earth materials and various non-metallic raw materials, etc., which have good combustion effects.
Technical Parameters Of High Frequency Furnace:
Serial number |
Product model |
output power |
Oscillation frequency |
output | Cooling water pressure |
water temperature |
1 | WGH-15 | 15Kw | 50-100KHz | 220V | 0.2Mpa | <40℃ |
2 | WGH-25 | 25Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
3 | WGH-35 | 35Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
4 | WGH-40 | 40Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
5 | WGH-60 | 60Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
6 | WGH-80 | 80Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
7 | WGH-100 | 100Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
8 | WGH-120 | 120Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
9 | WGH-160 | 160Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <41℃ |
10 | WGH-200 | 200Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <42℃ |
High frequency furnace application:
The frequency of the power supply used is above 10000hz, up to 1MHz. High frequency induction furnace needs frequency conversion equipment. The capacity of high-frequency induction furnace is generally below 100kg due to the limitation of power supply. High frequency induction furnace is mainly used for scientific research in laboratory. The high-frequency power supply equipment can be equipped with quenching equipment for surface quenching of mechanical parts in the heat treatment department.
