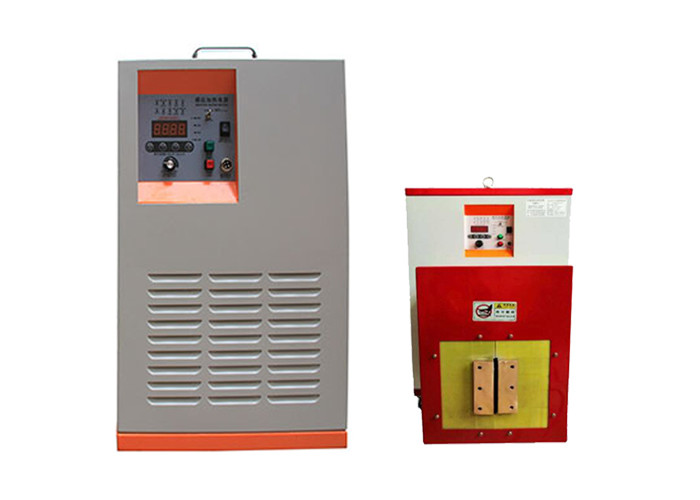

High Frequency Furnace High Frequency Induction Furnace Frequency Conversion Heating Equipment
Composition of high frequency furnace:
The structure of the high-frequency furnace is shown in the right figure. The induction coil is made of a single-layer coil of copper tube, and the water-cooled induction coil is provided with a crucible knotted with refractory material to accommodate the molten metal. The induction furnace usually consists of four parts: power supply, furnace body (mainly the induction ring and the crucible made of refractory materials in the induction ring), capacitor bank (used to improve the power factor), control and operating system.
Technical Parameters Of High Frequency Furnace:
Serial number |
Product model |
output power |
Oscillation frequency |
output | Cooling water pressure |
water temperature |
1 | WGH-15 | 15Kw | 50-100KHz | 220V | 0.2Mpa | <40℃ |
2 | WGH-25 | 25Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
3 | WGH-35 | 35Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
4 | WGH-40 | 40Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
5 | WGH-60 | 60Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
6 | WGH-80 | 80Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
7 | WGH-100 | 100Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
8 | WGH-120 | 120Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
9 | WGH-160 | 160Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <41℃ |
10 | WGH-200 | 200Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <42℃ |
Advantages of high frequency furnace:
1. IGBT module is adopted to save energy and power; 30% less power than the electronic tube type and 20% less power than the thyristor medium frequency;
2. Stable performance: complete protection measures, no worries;
3. Fast heating speed: induction heating, no oxide layer, small deformation;
4. Small volume: adopt split structure, light weight, easy to move and install;
5. Environmental protection: no pollution, noise and dust;
6. Strong adaptability: it can heat various workpieces;
7. The temperature and heating time can be precisely controlled, and the processing quality is high.
