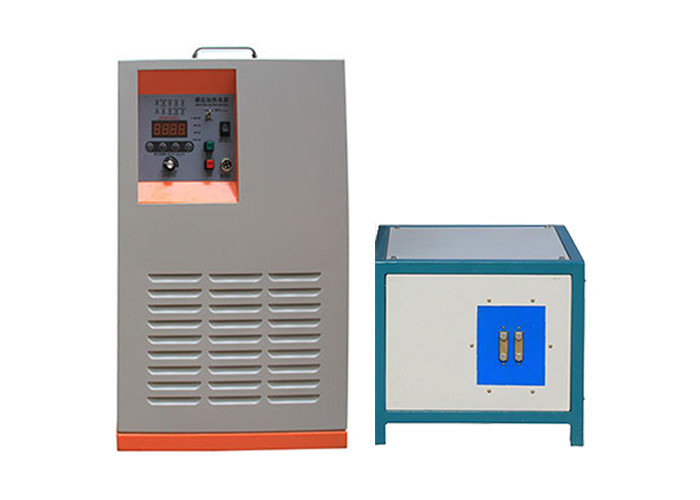

IGBT Module Small High Frequency Furnace Environmentally Friendly Energy Save
discussible
MOQ
discussible
Price
IGBT Module Small High Frequency Furnace Environmentally Friendly Energy Save
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, China
Brand Name: lincheng
Model Number: LC-WGH-75
High Light:

Small High Frequency Furnace

,

IGBT High Frequency Furnace

,

Environmentally Friendly High Frequency Furnace

Payment & Shipping Terms
Packaging Details: Wooden case packaging
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Product Model: WGH-75
Output Power: 75Kw
Oscillation Frequency: 75KHz
Output: 380V
Cooling Water Pressure: 0.2Mpa
Water Temperature: 80℃
Product Description

High Frequency Furnace IGBT Module Is Adopted To Save Energy And Power Easy To Move



The principle of high frequency furnace is:

    Put the workpiece into the inductor. The inductor is generally a hollow copper tube that inputs medium frequency or high frequency alternating current (1000-300000 Hz or higher). The alternating magnetic field generates induced current of the same frequency in the workpiece. The induced current is uneven in the distribution of the workpiece. It is strong on the surface, but weak in the interior, and close to 0 in the center. By using this skin effect, the surface of the workpiece can be rapidly heated, and the surface temperature will rise to 800-1000 ℃ within a few seconds, while the temperature in the center will rise very little.



Technical Parameters Of High Frequency Furnace:

Serial
number
Product
model
output
power
Oscillation
frequency
output Cooling
water pressure
water
temperature
1 WGH-15 15Kw 50-100KHz 220V 0.2Mpa <40℃
2 WGH-25 25Kw 50-100KHz 380V 0.2Mpa <40℃
3 WGH-35 35Kw 50-100KHz 380V 0.2Mpa <40℃
4 WGH-40 40Kw 50-100KHz 380V 0.2Mpa <40℃
5 WGH-60 60Kw 20-80KHz 380V 0.2Mpa <40℃
6 WGH-80 80Kw 20-80KHz 380V 0.2Mpa <40℃
7 WGH-100 100Kw 20-80KHz 380V 0.2-0.3Mpa <40℃
8 WGH-120 120Kw 20-80KHz 380V 0.2-0.3Mpa <40℃
9 WGH-160 160Kw 20-80KHz 380V 0.2-0.3Mpa <41℃
10 WGH-200 200Kw 20-80KHz 380V 0.2-0.3Mpa <42℃



Advantages of high frequency furnace:

    1. IGBT module is adopted to save energy and power; 30% less power than the electronic tube type and 20% less power than the thyristor medium frequency;

    2. Stable performance: complete protection measures, no worries;

    3. Fast heating speed: induction heating, no oxide layer, small deformation;

    4. Small volume: adopt split structure, light weight, easy to move and install;

    5. Environmental protection: no pollution, noise and dust;

    6. Strong adaptability: it can heat various workpieces;

    7. The temperature and heating time can be precisely controlled, and the processing quality is high.
