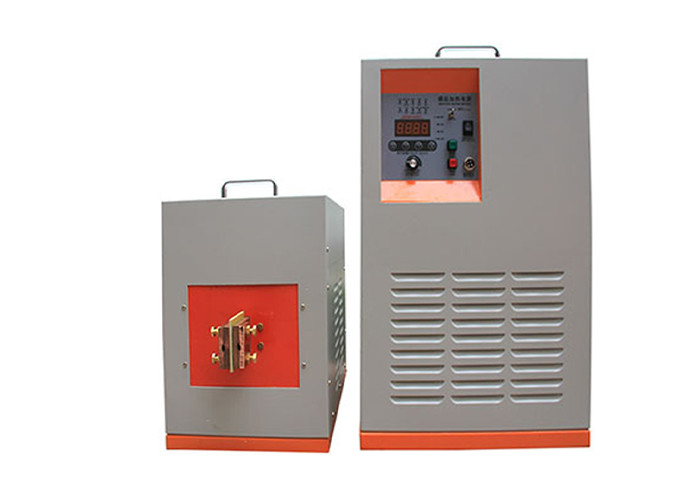

High Frequency Furnace The Surface Temperature Of Electromagnetic Induction Heating Can Reach 800-1000 ℃
Introduction to high frequency furnace:
The heating method of the high-frequency induction furnace is to generate high-frequency electromagnetic field through the electronic tube oscillation circuit, and then add it to the sample to induce the sample to generate eddy current (eddy current), thereby generating Joule heat and rapidly heating and melting the sample. Therefore, it is called the high-frequency induction furnace.
Technical Parameters Of High Frequency Furnace:
Serial number |
Product model |
output power |
Oscillation frequency |
output | Cooling water pressure |
water temperature |
1 | WGH-15 | 15Kw | 50-100KHz | 220V | 0.2Mpa | <40℃ |
2 | WGH-25 | 25Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
3 | WGH-35 | 35Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
4 | WGH-40 | 40Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
5 | WGH-60 | 60Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
6 | WGH-80 | 80Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
7 | WGH-100 | 100Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
8 | WGH-120 | 120Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
9 | WGH-160 | 160Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <41℃ |
10 | WGH-200 | 200Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <42℃ |
Advantages of high frequency furnace:
1. IGBT module is adopted to save energy and power; 30% less power than the electronic tube type and 20% less power than the thyristor medium frequency;
2. Stable performance: complete protection measures, no worries;
3. Fast heating speed: induction heating, no oxide layer, small deformation;
4. Small volume: adopt split structure, light weight, easy to move and install;
5. Environmental protection: no pollution, noise and dust;
6. Strong adaptability: it can heat various workpieces;
7. The temperature and heating time can be precisely controlled, and the processing quality is high.
