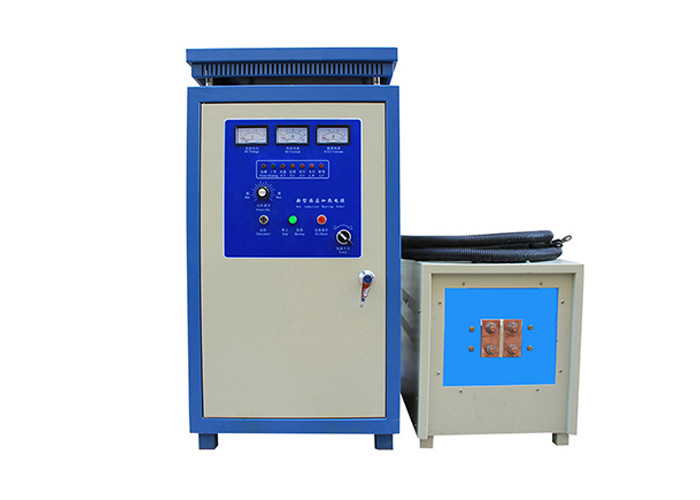

High Frequency Furnace Heat Preservation Cooling Metal
Performance Characteristics Of High Frequency Furnace:
1. The company adopts MOSFET, IGBT power devices and unique frequency conversion technology to ensure stable operation and provide higher reliability and durability.
2. Under the same conditions, it has the effect of saving twice as much power as the traditional electronic tube high-frequency heating equipment. It has the effect of "small material and large use" to achieve twice the result with half the effort. At the same time, it reduces the power load and power capacity, and saves costs for you.
3. The high-frequency furnace has full load design and can work continuously for 24 hours.
4. The power supply is selected according to the power and frequency. The higher the frequency, the shallower the heating depth, and the lower the frequency, the better the heat permeability.
5. It has the function setting of heating, insulation and cooling, which is conducive to improving the heating quality and heating cycle, and simplifying the manual operation.
Technical Parameters Of High Frequency Furnace:
Serial number |
Product model |
output power |
Oscillation frequency |
output | Cooling water pressure |
water temperature |
1 | WGH-15 | 15Kw | 50-100KHz | 220V | 0.2Mpa | <40℃ |
2 | WGH-25 | 25Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
3 | WGH-35 | 35Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
4 | WGH-40 | 40Kw | 50-100KHz | 380V | 0.2Mpa | <40℃ |
5 | WGH-60 | 60Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
6 | WGH-80 | 80Kw | 20-80KHz | 380V | 0.2Mpa | <40℃ |
7 | WGH-100 | 100Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
8 | WGH-120 | 120Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <40℃ |
9 | WGH-160 | 160Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <41℃ |
10 | WGH-200 | 200Kw | 20-80KHz | 380V | 0.2-0.3Mpa | <42℃ |
Advantages of high frequency furnace:
1. IGBT module is adopted to save energy and power; 30% less power than the electronic tube type and 20% less power than the thyristor medium frequency;
2. Stable performance: complete protection measures, no worries;
3. Fast heating speed: induction heating, no oxide layer, small deformation;
4. Small volume: adopt split structure, light weight, easy to move and install;
5. Environmental protection: no pollution, noise and dust;
6. Strong adaptability: it can heat various workpieces;
7. The temperature and heating time can be precisely controlled, and the processing quality is high.
