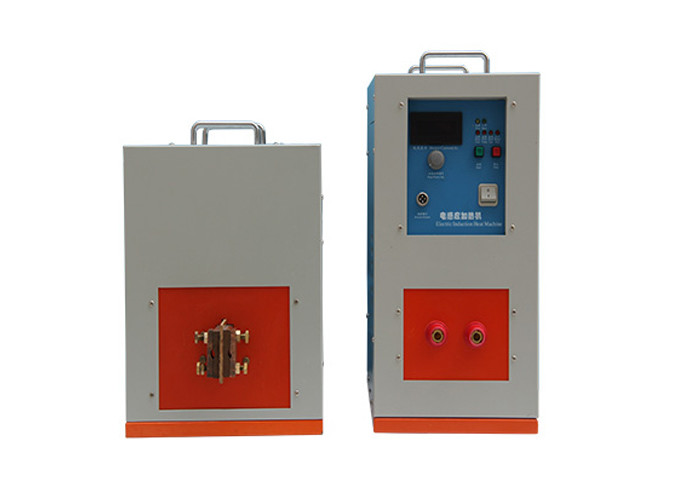

High Frequency Furnace Resonance Frequency: Easy To Install, No Need For Debugging And Easy To Use
Performance characteristics of high frequency furnace equipment:
1. Safe and reliable: the equipment has no high voltage of 10000 V, safe operation and can work continuously for 24 hours.
2. Digital phase lock: the digital phase lock technology is used to realize automatic frequency tracking and can automatically adapt to various sensors.
3. Resonance frequency conversion technology: resonance frequency conversion technology is adopted to make the overall efficiency of the equipment ≥ 90%, high efficiency and energy saving, and the power consumption is only 20% - 30% of that of the electronic tube induction heating equipment.
4. Fool type design: easy installation, no debugging and convenient use.
5. All solid state: IGBT devices are used for inverter, with high frequency, small volume and light weight.
6. Modular design: drive module control is adopted to ensure equipment reliability and easy maintenance.
Technical parameters of high frequency furnace equipment:
Model: wh-vi-30
Input power: 30KW
Input voltage: 342v-430v
Maximum input current: 55A
Cooling water flow (main engine): 15L / min (0.1MPa)
Oscillation frequency: 15-40khz
Cooling water pressure: 0.1-0.3mpa
Equipment volume: 580 × two hundred and eighty × 510mm3
Equipment weight: 45 ± 5% kg
Water temperature protection point: 50 ℃
Application of high frequency furnace equipment:
1. Hot upsetting of various high-strength bolts and nuts;
2. Quenching of various half shafts, leaf springs, forks, valves, rocker arms, ball pins and other auto parts.
3. Quenching of various internal combustion engine parts and reducer parts.
4. Quenching of various gears, sprockets and shafts;
5. Welding of various diamond composite bits;
6. Quenching of various pliers, scissors, axes, hammers and other hand tools.
7. Welding of various picks, drill heads, drill pipes, coal drill bits, air drill bits and other mining equipment
8. Welding of various hard alloy cutter heads and saw blades;
