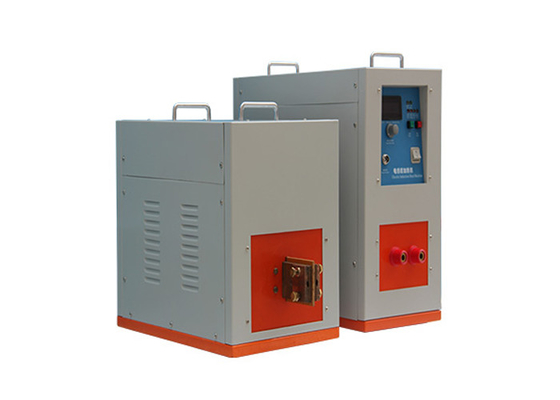

High Frequency Furnace Resonance Frequency: Easy To Install, No Need For Debugging And Easy To Use
High frequency furnace is mainly used for quenching, forging and other heat treatment of various crankshaft, camshaft, connecting rod and other workpieces. Because the equipment has the advantages of small size and convenient movement, it is suitable for factory use and can also be used for testing, and can meet the needs of different occasions.
Features of high frequency furnace:
1. Small volume, light weight, simple installation and convenient operation;
2. Safe and reliable, without 10000 v high voltage, very safe for operators;
3. Wide frequency band, which can meet pre forging heating, heat treatment and brazing of different workpieces;
4. The unique cooling circulation system ensures the equipment to work continuously for 24 hours.
5. There is almost no oxidation layer, no waste gas and no waste water.
6. High efficiency and obvious power saving, 60% less than traditional high-frequency equipment and 20% less than SCR IF;
Technical parameters of high frequency furnace equipment:
Model: wh-vi-30
Input power: 30KW
Input voltage: 342v-430v
Maximum input current: 55A
Cooling water flow (main engine): 15L / min (0.1MPa)
Oscillation frequency: 15-40khz
Cooling water pressure: 0.1-0.3mpa
Equipment volume: 580 × two hundred and eighty × 510mm3
Equipment weight: 45 ± 5% kg
Water temperature protection point: 50 ℃
Advantages of high frequency furnace:
1. Heating speed: the heating speed is less than 1 second (the speed can be adjusted and controlled);
2. When the power is controllable, the power can be adjusted to meet the needs of different heating temperatures and speeds
3. Wide heating range can heat various metal workpieces (replace the detachable induction ring according to the different working switches);
4. Less power consumption: about 70% less than the old electronic tube high-frequency equipment. The smaller the workpiece, the less power consumption;
5. The operation is simple and can be learned in a few minutes;
6. Start the quick connect water, and start the heating after the power is on
7. The protection system is equipped with over-voltage, over-current, overheating, water shortage and other alarm indicators, and is automatically controlled and protected
8. It is easy to install. It can be used by connecting the power supply, induction coil and inlet and outlet pipes; Small size, light weight, easy to use;
9. Good effect: the heating is very uniform, the heating is fast, the oxidation layer is small, and there is no waste after annealing;
