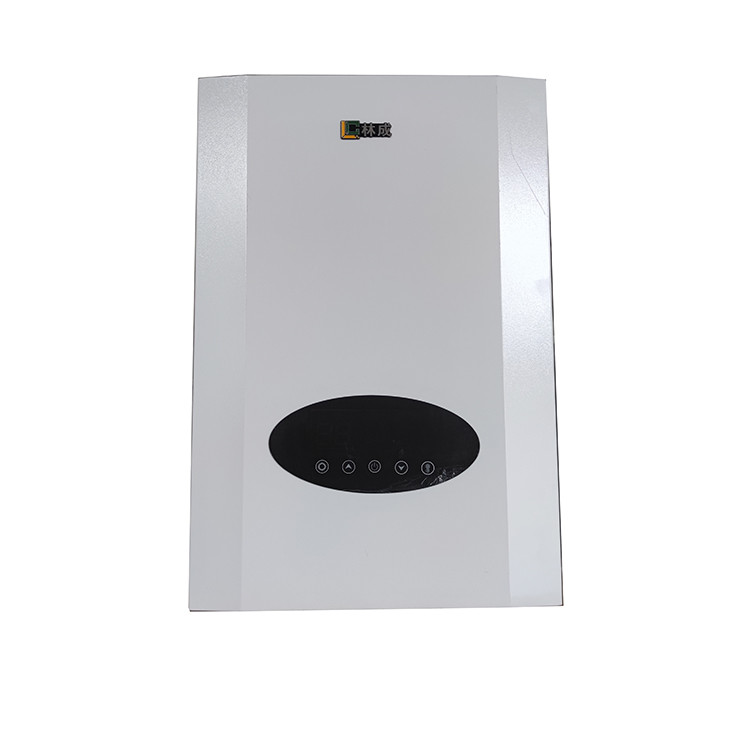

Semiconductor wall mounted electric heating furnace semiconductor heater
Product technical parameters:
Serial number | Product model | Company | LC-B-6kw | LC-B-8kw | LC-B-10kw | LC-B-12kw | LC-B-15kw |
1 | Rated power | KW | 6 | 8 | 10 | 12 | 15 |
2 | Rated current | A | 27.3 | 36.4 | 45.5 | 18.2 | 22.8 |
3 | Heating area | ㎡ | 60-80 | 100-120 | 100-120 | 120-140 | 150-180 |
4 | input voltage | 50HZ | 220V | 220V | 220V | 220V/380V | 220V/380V |
5 | Minimum flow of water pump configuration | L/min | 15 | 15 | 20 | 20 | 25 |
6 | Hot water yield 50 ℃ | L/min | 5.62 | 3.75 | 4.69 | 5.62 | 6.9 |
7 | Design thermal efficiency | ℃ | 98% | 98% | 98% | 98% | 98% |
8 | Maximum water temperature | ℃ | 85 | 85 | 85 | 85 | 85 |
9 | Low temperature protection temperature | ℃ | 5 | 5 | 5 | 5 | 5 |
10 | Overall dimension (length * width * height) | mm | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 |
11 | Water inlet and outlet interface | DN | 32 | 32 | 32 | 32 | 32 |
Working principle of semiconductor electric boiler:
The semiconductor ceramic sheet is used as the heating element, and the ceramic sheet is embedded into the treated heating pipe in advance. The ceramic sheet transmits heat to feed water through the heating pipe. The ceramic sheet does not contact with water in the whole heating process, realizing the separation of water and electricity, and is safe to use. The semiconductor heater has realized the separation of water and electricity in use, and the safety guarantee has been significantly improved. However, the scaling and power attenuation of the heater cannot be overcome. With the passage of time, the electroplated coating on the pipe wall is easy to disappear due to the long-term high temperature or the great temperature difference between cold and heat, resulting in serious power attenuation and unable to continue normal heat transfer.
Advantages of semiconductor electric boiler:
1. Modular structure, the scheme is more flexible, which can be used for household heating and central heating.
2. No scaling, no wearing and consumable parts, long-term energy saving.
3. Separation of water and electricity: the complete separation of water and electricity fully avoids the potential leakage hazards of electrical equipment, so that users have better security.
4. Intelligent control; The temperature control can switch between manual and automatic freely, and can display four modules: temperature, time, heating and alarm.
5. Moderate cost
6. The insulator is ceramic sheet, and the initial thermal conversion rate is 98%, but the half-life cycle of ceramic sheet is short, and the annual thermal conversion rate decreases by about 7%. About 6-10 years.
Application fields:
Electric heating, hot water and industrial steam are used in factory workshops, office buildings, schools, hotels, hospitals, greenhouses, administrative units, offices, villas, residential quarters, bathing centers, swimming pools, etc.
