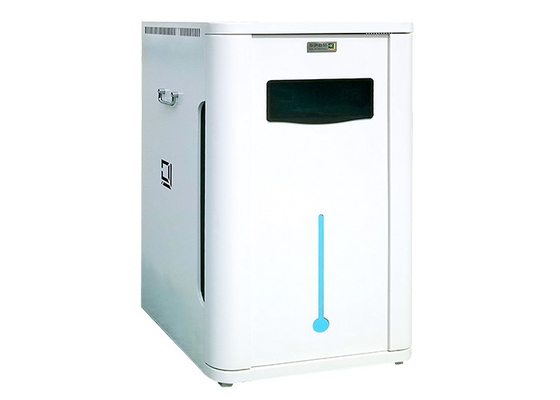

Electric Heating Furnace Frequency Conversion Floor Type Semiconductor Heating Heating Hot Water Boiler
Overview of electric heating furnace:
The electric heating furnace is a new generation product that uses electricity as energy to heat heating, air conditioning or sanitary hot water through electric heating tubes. The machine is characterized by fast heating, high thermal efficiency, small size, no noise, modular heating, energy saving, easy installation and use, and integrates advanced technologies at home and abroad. Heating methods (electric heating rod, quartz tube transition film, PTC liquid transition film, ceramic semiconductor, electromagnetic type and other heating methods).
Electric Heater Boiler Technical Parameter:
Serial number | Product model | Company | LC-L-20kw | LC-L-30kw |
1 | Rated power | KW | 20 | 30 |
2 | Rated current | A | 30.4 | 45.6 |
3 | Heating area | ㎡ | 200-300 | 300-400 |
4 | input voltage | 50HZ | 380V | 380V |
5 | Minimum flow of water pump configuration | L/min | 32 | 36 |
6 | Hot water yield 50 ℃ | L/min | 5.62 | 13.8 |
7 | Design thermal efficiency | ℃ | 98% | 98% |
8 | Maximum water temperature | ℃ | 85 | 85 |
9 | Low temperature protection temperature | ℃ | 5 | 5 |
10 | Overall dimension (length * width * height) | mm | 490*490*900 | 490*490*900 |
11 | Water inlet and outlet interface | DN | 32 | 40 |
Characteristics of electric heating furnace:
1. Fully automatic intelligent control technology, no need for special personnel to watch. The working mode is flexible and can be set to manual or automatic mode.
2. The automatic operation time period of the boiler can be set as required. A number of different working hours can be set in a day to enable the boiler to automatically start each heating group in time, and the heating group can be switched on and off in a cycle, so that the service time and frequency of each contactor are the same, and the service life of the equipment can be extended.
3. The controller can automatically control, calculate and track the water temperature or pressure, automatically start and stop the feed pump and electric heating pipe when the load changes, or manually control.
4. It has a complete range of protection functions, including leakage protection, water shortage protection, grounding protection, steam overpressure protection, over-current protection, power supply protection, etc., and the boiler is automatically protected, so that it is safe to go home.
5. Small boiler body, electromechanical integration, easy to install and match; Large boiler furnace body and electric control are designed separately to eliminate the influence of high temperature on the electric control part of the furnace body and ensure the stable operation of electric control devices.
