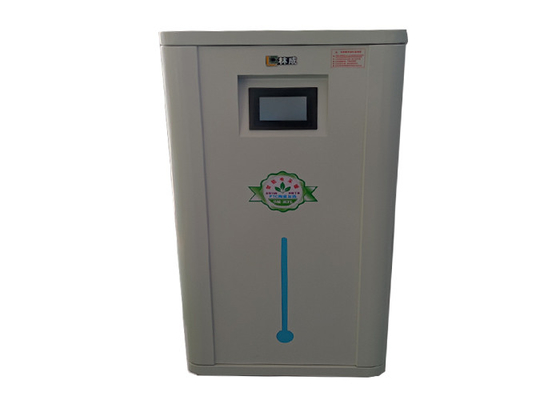

Electric Heating Furnace Floor Type Semiconductor Heating Boiler Energy-Saving Intelligent Temperature Control
Advantages of electric heating furnace:
The thermal efficiency of semiconductor electric heating furnace is 95% - 98%. Different manufacturers use different semiconductors. Different electric control methods result in different thermal efficiency of semiconductor boilers. Four sided aluminum tube heaters, six sided aluminum tube heaters, copper tube heaters, aluminum tube heaters+cooling water jackets, and red copper plate heaters. The thermal efficiency of the above different heaters is also different. The red copper plate heater uses red copper pipes on both sides of the heater to increase the heat transfer speed. The thermal efficiency can reach 98%.
Electric Heater Boiler Technical Parameter:
| Serial number | Product model | Company | LC-LD-20kw | LC-D-L30kw |
| 1 | Rated power | KW | 20 | 30 |
| 2 | Rated current | A | 31.6A | 41.6 |
| 3 | Heating area | ㎡ | 200-300 | 300-400 |
| 4 | input voltage | 50HZ | 380V | 380V |
| 5 | Minimum flow of water pump configuration | L/min | 32 | 36 |
| 6 | Hot water yield 50 ℃ | L/min | 5.62 | 13.8 |
| 7 | Design thermal efficiency | ℃ | 98% | 98% |
| 8 | Maximum water temperature | ℃ | 85 | 85 |
| 9 | Low temperature protection temperature | ℃ | 5 | 5 |
| 10 | Overall dimension (length * width * height) | mm | 500*495*900mm | 495*495*900mm |
| 11 | Water inlet and outlet interface | DN | 32 | 40 |
Features of electric heating furnace:
1. The heater is composed of seven vertical copper tubes with a diameter of 20 and two copper tubes with a diameter of 32. Due to the large heating area and uniform heat conduction of water, the heating speed is fast.
2. Both sides of the PTC heater are red copper pipes, which meet the requirements of heating on both sides of the heater.
3. The thermal efficiency reaches 98-98.5%. PTC heater uses positive and negative resistance of 5 ohms, which is superior to the common positive and negative resistance of 30 ohms.
4. It is not afraid of dry burning. The heating element will not be damaged after 5000 hours of continuous dry burning without water.
5. Water pressure resistance can reach 1.0Mpa.
6. The breakdown withstand voltage 2500VDC is twice the national standard.
