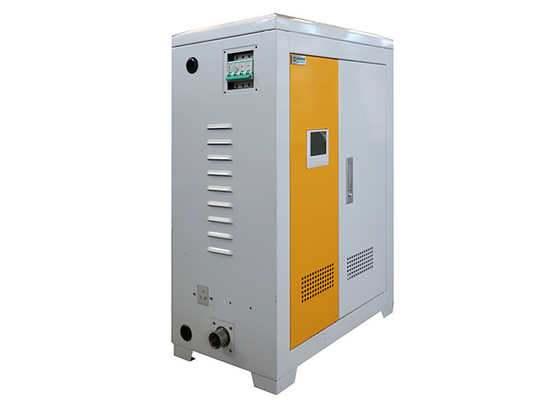

20kw Electric Heating Furnace Semiconductor Heating Frequency Conversion
discussible
MOQ
discussible
Price
20kw Electric Heating Furnace Semiconductor Heating Frequency Conversion
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, Liaoning, China
Brand Name: lincheng
Certification: ccc
Model Number: LC-D-20KW
High Light:

20kw Electric Heating Furnace

,

Electric Heating Furnace Semiconductor

,

Frequency Conversion 20kw electric furnace

Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 5 sets a day
Specifications
Model: LC-D-20kw
Rated Power: 20kw
Rated Current: 30.6A
Input Voltage: 380V
Maximum Outlet Water Temperature: 65℃-80℃
Overall Dimension (length * Width * Height): 495*495*900mm
Product Description

Electric Heating Furnace Frequency Conversion Floor Type Semiconductor Heating Heating Hot Water Boiler



Features of electric heating furnace:

Electric heating furnace is also divided into semiconductor electric boiler. The advantages of semiconductor electric boiler are that the thermal efficiency can really reach 98%, the heating speed is fast, the service life is long, the power attenuation is small, and the power attenuation is about 5% in 3-5 years.



Electric Heater Boiler Technical Parameter:

Serial number Product model Company LC-D-20kw LC-D-30kw
1 Rated power KW 20 30
2 Rated current A 33.5 40.5
3 Heating area 200-300 300-400
4 input voltage 50HZ 380V 380V
5 Minimum flow of water pump configuration L/min 32 36
6 Hot water yield 50 ℃ L/min 5.62 13.8
7 Design thermal efficiency 98% 98%
8 Maximum water temperature 85 85
9 Low temperature protection temperature 5 5
10 Overall dimension (length * width * height) mm 495*495*900mm 495*495*900mm
11 Water inlet and outlet interface DN 32 40



Advantages of electric heating furnace:

1. The heating body is composed of seven vertical copper tubes with a diameter of 20 and two copper tubes with a diameter of 32. Due to the large heating area and uniform heat conduction of water, the heating speed is fast;

2. Not afraid of dry burning, continuous dry burning without water for 5000 hours, and the heating element will not be damaged;

3. Water pressure resistance can reach 1.0Mpa;

4. The breakdown withstand voltage 2500VDC is twice the national standard
