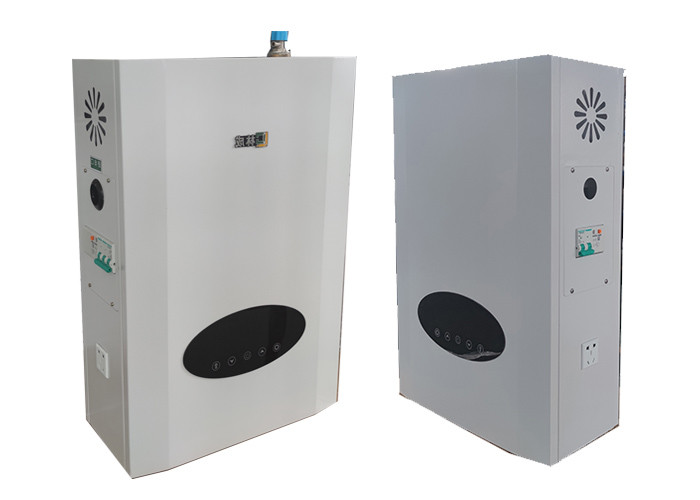

Electric Heating Furnace Frequency Conversion Floor Type Semiconductor Heating Heating Hot Water Boiler
Electric heating furnace product description:
Electric heating furnace is a fully automatic environment-friendly boiler designed with the latest electric heating technology and control system to supply hot water for heating, living and bathing.
The boiler is equipped with a special computer controller, which adopts modern computer control technology to realize the intellectualization, automation and humanization of the boiler performance. It has the advantages of high stability, rich functions, simple operation, convenient use and flexible control.
Electric Heater Boiler Technical Parameter:
| Serial number | Product model | Company | LC-L-40kw | LC-L-50kw |
| 1 | Rated power | KW | 40 | 50 |
| 2 | Rated current | A | 36.67A | 45.5 |
| 3 | Heating area | ㎡ | 200-300 | 300-400 |
| 4 | input voltage | 50HZ | 380V | 380V |
| 5 | Minimum flow of water pump configuration | L/min | 32 | 36 |
| 6 | Hot water yield 50 ℃ | L/min | 5.62 | 13.8 |
| 7 | Design thermal efficiency | ℃ | 98% | 98% |
| 8 | Maximum water temperature | ℃ | 85 | 85 |
| 9 | Low temperature protection temperature | ℃ | 5 | 5 |
| 10 | Overall dimension (length * width * height) | mm | 495*495*900mm | 490*490*900 |
| 11 | Water inlet and outlet interface | DN | 32 | 40 |
Characteristics of electric heating furnace:
1. Fully automatic intelligent control technology, no need for special personnel to watch. The working mode is flexible and can be set to manual or automatic mode.
2. The automatic operation time period of the boiler can be set as required. A number of different working hours can be set in a day to enable the boiler to automatically start each heating group in time, and the heating group can be switched on and off in a cycle, so that the service time and frequency of each contactor are the same, and the service life of the equipment can be extended.
3. The controller can automatically control, calculate and track the water temperature or pressure, automatically start and stop the feed pump and electric heating pipe when the load changes, or manually control.
4. It has a complete range of protection functions, including leakage protection, water shortage protection, grounding protection, steam overpressure protection, over-current protection, power supply protection, etc., and the boiler is automatically protected, so that it is safe to go home.
5. Small boiler body, electromechanical integration, easy to install and match; Large boiler furnace body and electric control are designed separately to eliminate the influence of high temperature on the electric control part of the furnace body and ensure the stable operation of electric control devices.
