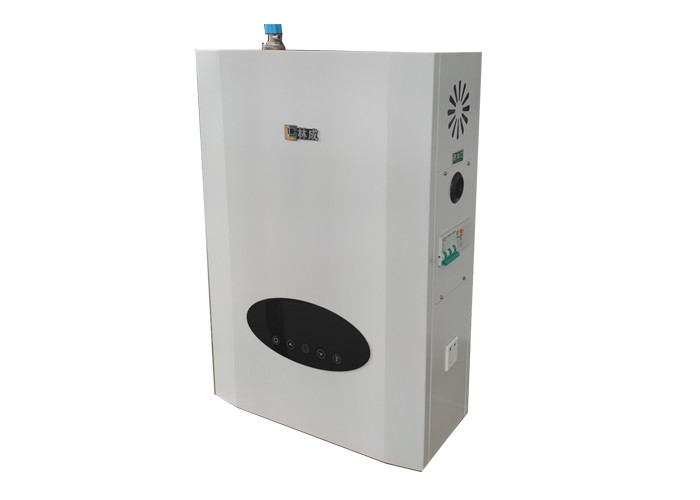

Electric Heating Furnace Semiconductor Floor Type Electric Heating Boiler Electric Heating Equipment
Overview of electric heating furnace:
The electric heating furnace has three heating methods: electromagnetic induction heating method and resistance (electric heating tube) PTC ceramic semiconductor heating method. The resistance heating method is divided into stainless steel heating tube electric boiler and ceramic heating tube electric boiler. The resistance heating method uses resistance tubular electric heating element for heating, while the semiconductor type uses oxide semiconductor ceramic chip. Water and electricity are completely separated.
Product technical parameters:
Serial number | Product model | Company | LC-B-6kw | LC-B-8kw | LC-B-10kw | LC-B-12kw | LC-B-15kw |
1 | Rated power | KW | 6 | 8 | 10 | 12 | 15 |
2 | Rated current | A | 27.3 | 36.4 | 45.5 | 18.2 | 22.8 |
3 | Heating area | ㎡ | 60-80 | 100-120 | 100-120 | 120-140 | 150-180 |
4 | input voltage | 50HZ | 220V | 220V | 220V | 220V/380V | 220V/380V |
5 | Minimum flow of water pump configuration | L/min | 15 | 15 | 20 | 20 | 25 |
6 | Hot water yield 50 ℃ | L/min | 5.62 | 3.75 | 4.69 | 5.62 | 6.9 |
7 | Design thermal efficiency | ℃ | 98% | 98% | 98% | 98% | 98% |
8 | Maximum water temperature | ℃ | 85 | 85 | 85 | 85 | 85 |
9 | Low temperature protection temperature | ℃ | 5 | 5 | 5 | 5 | 5 |
10 | Overall dimension (length * width * height) | mm | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 |
11 | Water inlet and outlet interface | DN | 32 | 32 | 32 | 32 | 32 |
Application field of electric heating furnace:
Electric heating furnace is also called electric steam furnace. Electric steam boiler refers to a steam boiler that uses power to heat and produce rated pressure. The electric steam boiler can be used for the steam required in the processing process of industrial products such as textiles, printing and dyeing, paper making, food, rubber, plastics, chemical industry, medicine, steel, metallurgy, and can also be used for heating, bathing, air conditioning, and domestic hot water in enterprises, institutions, hotels, schools, catering, service industries, etc.
