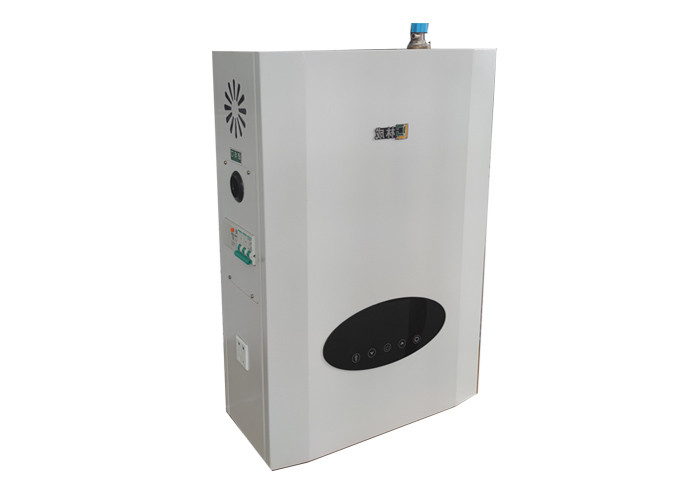

Electric Heating Furnace Intelligent Heating Hot Water Heating Commercial And Civil Electric Heating Boiler
Working principle of electric heating furnace:
The electric heating furnace adopts a metal tubular electric heater to heat the water supply so that the electric energy can be directly converted into heat energy (generating hot water or steam). It is not necessary to convert chemical energy into heat energy by combustion, so it is not necessary to supply air and fuel for combustion, and harmful gases and ash will not be discharged, which fully meets the environmental requirements.
Product technical parameters:
Serial number | Product model | Company | LC-B-6kw | LC-B-8kw | LC-B-10kw | LC-B-12kw | LC-B-15kw |
1 | Rated power | KW | 6 | 8 | 10 | 12 | 15 |
2 | Rated current | A | 27.3 | 36.4 | 45.5 | 18.2 | 22.8 |
3 | Heating area | ㎡ | 60-80 | 100-120 | 100-120 | 120-140 | 150-180 |
4 | input voltage | 50HZ | 220V | 220V | 220V | 220V/380V | 220V/380V |
5 | Minimum flow of water pump configuration | L/min | 15 | 15 | 20 | 20 | 25 |
6 | Hot water yield 50 ℃ | L/min | 5.62 | 3.75 | 4.69 | 5.62 | 6.9 |
7 | Design thermal efficiency | ℃ | 98% | 98% | 98% | 98% | 98% |
8 | Maximum water temperature | ℃ | 85 | 85 | 85 | 85 | 85 |
9 | Low temperature protection temperature | ℃ | 5 | 5 | 5 | 5 | 5 |
10 | Overall dimension (length * width * height) | mm | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 |
11 | Water inlet and outlet interface | DN | 32 | 32 | 32 | 32 | 32 |
Characteristics of electric heating furnace:
1. Low surface heat load electric heating elements complying with JB/2379-93 and Technical Conditions for Metal Tubular Electric Heating Elements shall be used. High quality electric heating wire is coated with thickened stainless steel tube, and the tube is filled with high-purity magnesia powder. The electric heating tube has a long service life. Each group of electric heating elements adopts flange connection, which is characterized by simple structure, high mechanical strength, safety and reliability, and easy replacement.
2. The compact, scientific and reasonable design and advanced manufacturing technology make the boiler take up less space, facilitate transportation and save the use site.
3. No noise, no pollution, high thermal efficiency. The boiler body uses high-quality and efficient thermal insulation materials for thermal insulation, with small heat dissipation loss and energy saving.
4. The outer package of the boiler is designed with famous and high-quality color plates, which is beautiful and easy to rust.
5. The fully automatic electric heating furnace is widely used in hospitals, schools, textile factories, garment factories, garment supermarkets, garment factories, dry cleaners, restaurants, hotels, steamed buns, hotels, canteens, restaurants, food factories, beverage factories, bean products factories, meat products factories, canneries, distilleries, pharmaceutical factories, packaging factories, building materials factories, paint factories, beauty salons, bath centers, saunas, vegetable dehydration, steaming rooms and other places.
