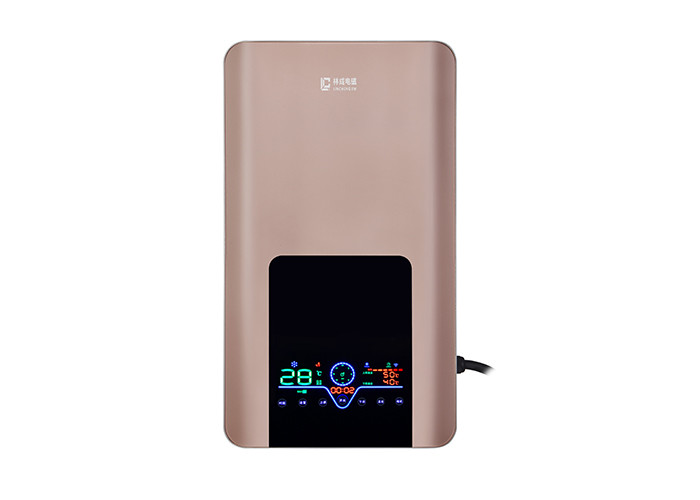

380V 10kw Wall Mounted Electric Boiler With 120m2 Heating Area
1 set
MOQ
discussible
Price
380V 10kw Wall Mounted Electric Boiler With 120m2 Heating Area
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, Liaoning, China
Brand Name: lincheng
Model Number: LC-B-10kw
High Light:

10kw Wall Mounted Electric Boiler

,

380V Wall Mounted Electric Boiler

,

Wall Mounted 10kw Electric Boiler

Payment & Shipping Terms
Packaging Details: Wooden case packaging
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Rated Power: 10kw
Heating Area: 100-120㎡
Input Voltage: 380V
Sectional Area Of Power Line: ≥10㎡
Overall Dimension (length * Width * Height): 360mm*170mm*630mm
Access Interface: 32DN
Colour: Pink
Application Area: Workshops, Factories, Office Buildings, Baths, Baths, Household, Schools, Villas, Hospitals
Product Description

380V 10kw Wall Mounted Electric Boiler With 120m2 Heating Area



Main Advantages Of Wall Mounted Electric Boiler System:



1. Energy saving technology: through the indoor temperature controller, the room temperature can be adjusted and kept constant according to the needs of the enterprise. The temperature of the room that is not used temporarily can be adjusted lower, which can truly realize the purpose of China's economic development and operation and saving resources and energy.

Long service life, no need to set up a special maintenance organization, the service life of the electric heating system can reach decades, no need to set up a special maintenance organization, and no need to set up headache problems such as water heating system operation, discharge, dripping, leakage and radiator freezing crack.

3. Reduce common building diseases: since there is no hidden danger of heating and hot water leakage, the accident loss of the owner and the insurance company and the accident interference to the neighbors are reduced, and the property loss and workload are also reduced. It is economical and beneficial to build a harmonious society and people-oriented.



Product Parameters



NO. Product model Unit LC-B-6kw LC-B-8kw LC-B-10kw LC-B-12kw LC-B-15kw
1 Rated power KW 6 8 10 12 15
2 Rated current A 27.3 36.4 45.5 48.2 52.8
3 Heating area 60-80 80-100 100-120 120-140 150-180
4 input voltage 50HZ 220V 220V 220V 220V/380V 220V/380V
5 Minimum flow of water pump configuration L/min 15 15 20 20 25
6 Hot water yield 50 ℃ L/min 5.62 3.75 4.69 5.62 6.9
7 Design thermal efficiency 98% 98% 98% 98% 98%
8 Maximum water temperature 85 85 85 85 85
9 Low temperature protection temperature 5 5 5 5 5
10 Size(length * width * height) mm 360*170*630 360*170*630 360*170*630 360*170*630 360*170*630
11 Water inlet and outlet interface DN 32 32 32 32 32





380V 10kw Wall Mounted Electric Boiler With 120m2 Heating Area 0

                     Why choose us ?

380V 10kw Wall Mounted Electric Boiler With 120m2 Heating Area 1

Heating Principle Of Wall Mounted Electric Boiler:



As the name implies, the wall mounted electric boiler applies the electromagnetic principle to work, and also belongs to a kind of electric heating. It cuts the metal through the magnetic line of force and then generates eddy current, thus generating heat energy, which is then used to play its heating role through the heat dissipation system



features Of Wall Mounted Electric Boiler System:



4. No pollution caused by the environment, no pollution caused by coal ash, soot, combustion exhaust gas, etc., which meets the needs of China's modernization and urban ecological environment protection; The system operates safely without noise and odor. The indoor design is free of dust floating caused by hot air convection, which makes the indoor air cleaner and is beneficial to the physical and mental health of students.

5. The safe and reliable electric heating operation is completely waterproof, and the key parts are also waterproof, so that the whole system is moisture-proof.

6. The simple management has effectively solved the problem of difficult heating charges, which can be divided into rooms, household metering power supply, and residents paying heating fees through power purchase, and completely solved the problem of difficult heating charges that is a headache for heating property management departments and governments at all levels. At the same time, it saves manpower and material resources and facilitates management.

It is as warm and comfortable as sunshine. Because of the radiation heating, there is no dry and stuffy feeling of traditional heating, and it gives people a warm and comfortable feeling like being exposed to the sun. At the same time, because the walls, floors and furniture absorb energy, the temperature rises, thus reducing the cold radiation to the human body, so the comfort of the electric heating system is higher than that of the traditional heating system
