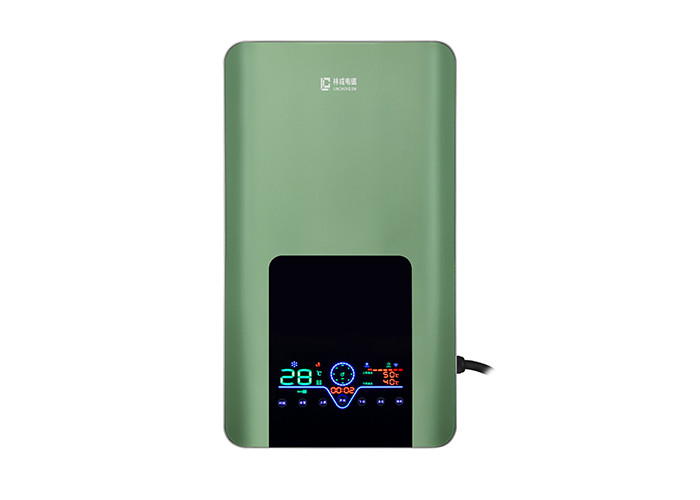

Wall Mounted Electric Boiler 6kW Heating Area: 60-80 ㎡ Electromagnetic induction heating mode
Heating Principle Of Wall Mounted Electric Boiler:
The principle of the wall mounted electric boiler is electromagnetic induction phenomenon, that is, the alternating current is used to generate the alternating magnetic field with changing direction through the coil, and the eddy current will appear inside the conductor in the alternating magnetic field (refer to Faraday's law of electromagnetic induction for the reason), which is caused by the eddy electric field pushing the carriers in the conductor (the electrons in the pot are not iron atoms); The Joule heat effect of the vortex current heats up the conductor to realize heating.
Wall Mounted Electric Boiler Product Parameters:
Serial number | Product model | Company | LC-B-6kw | LC-B-8kw | LC-B-10kw | LC-B-12kw | LC-B-15kw |
one | Rated power | KW | 6 | 8 | 10 | 12 | 15 |
two | Rated current | A | 18.2 | 22.8 | 27.3 | 30.4 | 36.4 |
three | Heating area | ㎡ | 60-80 | 80-100 | 100-120 | 120-140 | 150-180 |
four | input voltage | 50HZ | 220V | 220V | 220V | 220V/380V | 220V/380V |
five | Minimum flow of water pump configuration | L/min | 15 | 15 | 20 | 20 | 25 |
six | Hot water yield 50 ℃ | L/min | 5.62 | 3.75 | 4.69 | 5.62 | 6.9 |
seven | Design thermal efficiency | ℃ | 98% | 98% | 98% | 98% | 98% |
eight | Maximum water temperature | ℃ | 85 | 85 | 85 | 85 | 85 |
nine | Low temperature protection temperature | ℃ | 5 | 5 | 5 | 5 | 5 |
ten | Overall dimension (length * width * height) | mm | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 |
13 | Water inlet and outlet interface | DN | 32 | 32 | 32 | 32 | 32 |
Some Advantages Of Wall Mounted Electric Boiler Control:
The advantages of using wall mounted electric boiler for heating are: safety, long service life, intelligent temperature control, etc.
The wall mounted electric boiler is convenient to use. The intelligent equipment avoids the contact between the human body and the power supply, which provides a guarantee for our safety. At the same time, the wall mounted electric boiler has a long service life, is not easy to be damaged, and is easy to fail.
Advantages Of Wall Mounted Electric Boiler:
1. The design is very practical. The household wall mounted electric boiler can be controlled remotely, which is more convenient, fast and flexible to use. It can also perform conventional heating operations so that people can heat the room before it arrives, thereby saving energy.
2. The heating efficiency of the household wall mounted electric boiler is very high. It adopts advanced electromagnetic induction heating technology, which can save more energy and heat quickly. It is not easy to produce scale, does not need regular maintenance, and will not have any impact on heating efficiency. influence.
3. The household wall mounted electric boiler is an environmental friendly heating equipment, which will not cause pollution, so there is no need to worry about gas poisoning when heating the house.
