Product Parameters
NO. | Product model | Unit | LC-B-6kw | LC-B-8kw | LC-B-10kw | LC-B-12kw | LC-B-15kw |
1 | Rated power | KW | 6 | 8 | 10 | 12 | 15 |
2 | Rated current | A | 27.3 | 36.4 | 45.5 | 48.2 | 52.8 |
3 | Heating area | ㎡ | 60-80 | 80-100 | 100-120 | 120-140 | 150-180 |
4 | input voltage | 50HZ | 220V | 220V | 220V | 220V/380V | 220V/380V |
5 | Minimum flow of water pump configuration | L/min | 15 | 15 | 20 | 20 | 25 |
6 | Hot water yield 50 ℃ | L/min | 5.62 | 3.75 | 4.69 | 5.62 | 6.9 |
7 | Design thermal efficiency | ℃ | 98% | 98% | 98% | 98% | 98% |
8 | Maximum water temperature | ℃ | 85 | 85 | 85 | 85 | 85 |
9 | Low temperature protection temperature | ℃ | 5 | 5 | 5 | 5 | 5 |
10 | Size (length * width * height) | mm | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 |
11 | Water inlet and outlet interface | DN | 32 | 32 | 32 | 32 | 32 |

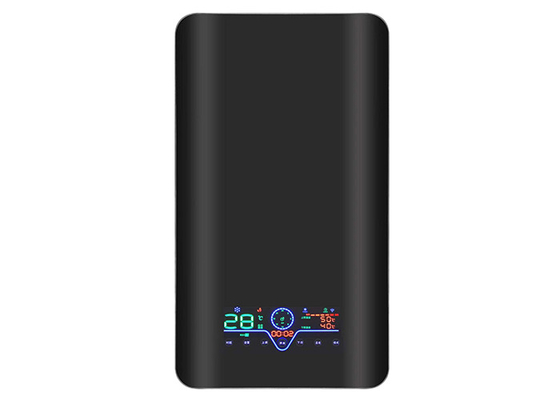

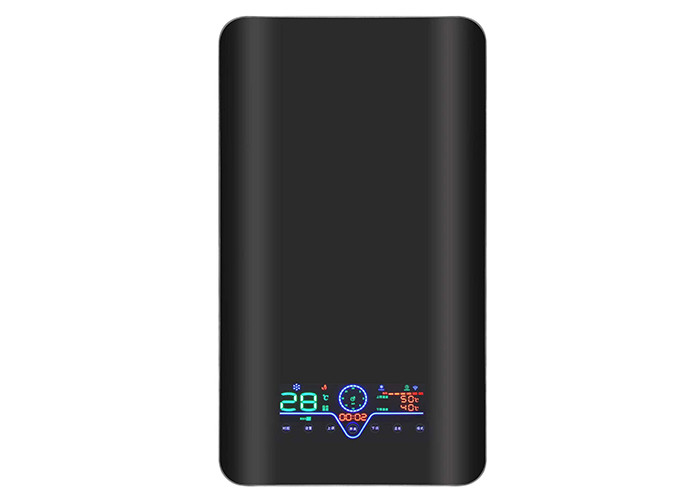

Introduction To Wall Mounted Electric Boiler:
The wall mounted electric boiler belongs to the hot water boiler, which is a heating equipment that converts electric energy into heat energy to directly release heat or circulates heat medium in the heating pipe to meet the heating demand, and belongs to the category of electric hot water boiler.
Product Details
Why choose us ?
Installation Of Wall Mounted Electric Boiler:
Intelligent electric heating furnace is a heating equipment commonly used in winter. It is energy-saving and environmental protection, automatic temperature control, dry burning prevention and leakage protection. When installing the intelligent electric heating furnace, professional personnel shall be selected to install it according to the construction standards to avoid potential safety hazards caused by wrong installation.
