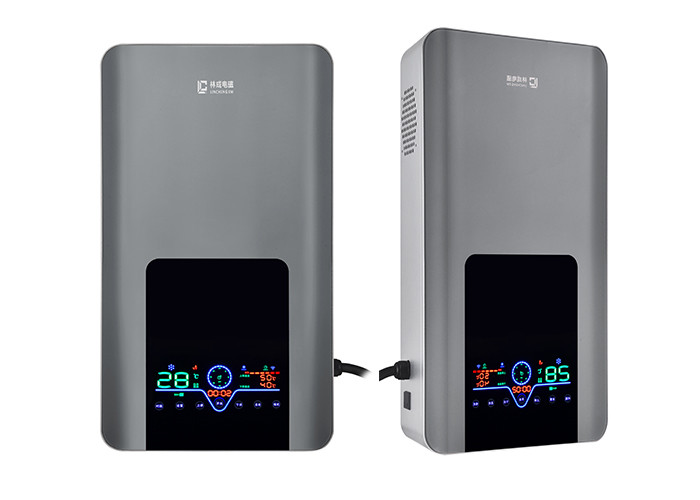

Introduction To Wall Mounted Electric Boiler:
The core of the wall mounted electric boiler is a heat generating device that uses the electromagnetic principle and uses the heat generated by the eddy current generated by the magnetic wire cutting metal as the heat source and passes through the heat emission system (such as the water heating system) to achieve the heating purpose.
Product Parameters:
NO. | Product model | Unit | LC-B-6kw | LC-B-8kw | LC-B-10kw | LC-B-12kw | LC-B-15kw |
1 | Rated power | KW | 6 | 8 | 10 | 12 | 15 |
2 | Rated current | A | 27.3 | 36.4 | 45.5 | 48.2 | 52.8 |
3 | Heating area | ㎡ | 60-80 | 80-100 | 100-120 | 120-140 | 150-180 |
4 | input voltage | 50Hz | 220V | 220V | 220V | 220V/380V | 220V/380V |
5 | Minimum flow of water pump configuration | L/min | 15 | 15 | 20 | 20 | 25 |
6 | Hot water yield 50 ℃ | L/min | 5.62 | 3.75 | 4.69 | 5.62 | 6.9 |
7 | Design thermal efficiency | ℃ | 98% | 98% | 98% | 98% | 98% |
8 | Maximum water temperature | ℃ | 85 | 85 | 85 | 85 | 85 |
9 | Low temperature protection temperature | ℃ | 5 | 5 | 5 | 5 | 5 |
10 | Overall dimension (length * width * height) | mm | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 |
11 | Water inlet and outlet interface | DN | 32 | 32 | 32 | 32 |
32 |
Why choose us ?
Classification Of Wall Mounted Electric Boilers:
Electromagnetic heating is a kind of electric heating. Relatively speaking, it has higher requirements for technicians. Electromagnetic heating is distinguished according to its frequency, scope of use, and material selection.
In terms of frequency, it is generally divided into power frequency, medium frequency and high frequency. Among them, high frequency heating has the best effect in heating.
From the scope of use: it is generally divided into household, commercial and industrial use.
Material selection from design: generally divided into single tube, double tube, half bridge and full bridge circuits.
