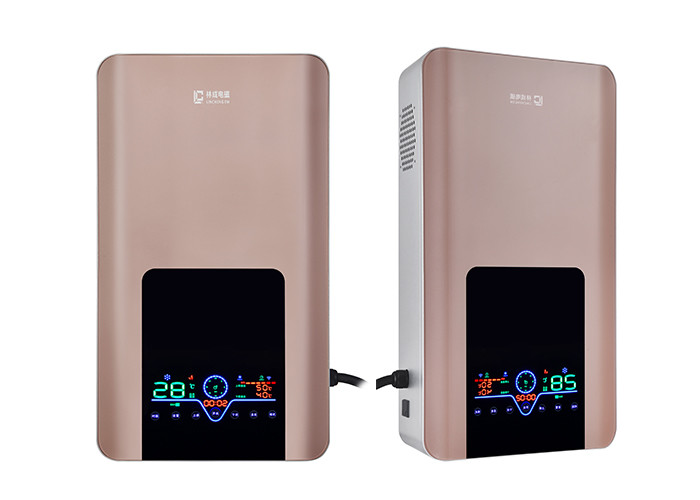

Automatic Wall Mounted Electric Boiler , Electromagnetic 12kw Electric Combi Boiler
Energy Saving Of Wall Mounted Electric Boiler:
High frequency electromagnetic induction heating directly acts on the water tank through electromagnetic induction, making the water tank heat itself, reducing the process of conduction through the medium, with less heat loss and high thermal efficiency, i.e. heating when adding, without heat storage container, and the instantaneous thermal efficiency can be as high as 80%.
Product Parameters
NO. | Product model | Unit | LC-B-6kw | LC-B-8kw | LC-B-10kw | LC-B-12kw | LC-B-15kw |
1 | Rated power | KW | 6 | 8 | 10 | 12 | 15 |
2 | Rated current | A | 27.3 | 36.4 | 45.5 | 48.2 | 52.8 |
3 | Heating area | ㎡ | 60-80 | 80-100 | 100-120 | 120-140 | 150-180 |
4 | input voltage | V | 220V | 220V | 220V | 220V/380V | 220V/380V |
5 | Minimum flow of water pump configuration | L/min | 15 | 15 | 20 | 20 | 25 |
6 | Hot water yield 50 ℃ | L/min | 5.62 | 3.75 | 4.69 | 5.62 | 6.9 |
7 | Design thermal efficiency | ℃ | 98% | 98% | 98% | 98% | 98% |
8 | Maximum water temperature | ℃ | 85 | 85 | 85 | 85 | 85 |
9 | Low temperature protection temperature | ℃ | 5 | 5 | 5 | 5 | 5 |
10 | Size (length * width * height) | mm | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 |
11 | Water inlet and outlet interface | DN | 32 | 32 | 32 | 32 | 32 |
Product Details
Why choose us ?
Safety Of Wall Mounted Electric Boiler:
1. Electromagnetic induction heating, real separation of water and electricity, circuit and waterway insulation.
2. Low voltage soft start can reduce the harm of current surge impact and avoid damage to equipment due to voltage fluctuation, thus ensuring safety.
3. The variable frequency power output part can automatically adjust the current according to the voltage fluctuation to ensure the constant power.
4. The current will rise with the voltage rise, resulting in insufficient electrical load and damage.
5. Wall mounted electric boiler: the structure of the whole machine is separated from water and circuit, with reasonable structure and high safety
6. Wall mounted electric boiler: the water and electricity of the whole machine are not separated, and the safety hazard is large
