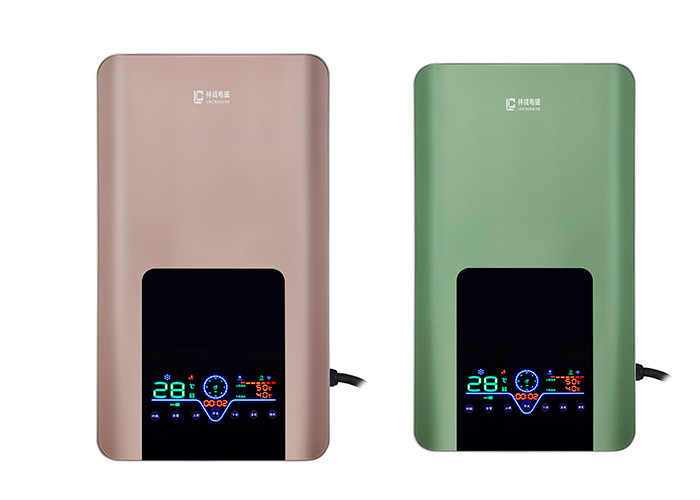

Wall Mounted Electric Boiler 15kw Wall Mounted Electric Heating Furnace Energy Saving
Technical Design Of Wall Mounted Electric boiler:
The wall mounted electric boiler furnace is scientifically designed and carefully selected according to the characteristics of different heating needs. The industrial grade half bridge technology design and exclusive software driver are adopted to solve the problem of interference and easy burning, highlight the stability of the product. The 500 degree mica high-temperature resistant cable greatly enhances the safety factor and service life. National standard electrical materials and electrical connection shall be carried out in accordance with electrical standards
Wall Mounted Electric Boiler Product Parameters:
Serial number | Product model | Company | LC-B-6kw | LC-B-8kw | LC-B-10kw | LC-B-12kw | LC-B-15kw |
one | Rated power | KW | 6 | 8 | 10 | 12 | 15 |
two | Rated current | A | 27.3 | 36.4 | 45.5 | 48.2 | 52.8 |
three | Heating area | ㎡ | 60-80 | 80-100 | 100-120 | 120-140 | 150-180 |
four | input voltage | 50HZ | 220V | 220V | 220V | 220V/380V | 220V/380V |
five | Minimum flow of water pump configuration | L/min | 15 | 15 | 20 | 20 | 25 |
six | Hot water yield 50 ℃ | L/min | 5.62 | 3.75 | 4.69 | 5.62 | 6.9 |
seven | Design thermal efficiency | ℃ | 98% | 98% | 98% | 98% | 98% |
eight | Maximum water temperature | ℃ | 85 | 85 | 85 | 85 | 85 |
nine | Low temperature protection temperature | ℃ | 5 | 5 | 5 | 5 | 5 |
ten | Overall dimension (length * width * height) | mm | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 |
13 | Water inlet and outlet interface | DN | 32 | 32 | 32 | 32 | 32 |
Characteristics Of Wall Mounted Electric Boiler:
1. Stability: industrial grade technology and materials (non household induction cooker parts) can meet the long-term heating requirements
2. Wide temperature: more suitable for work under various temperature conditions
3. Anti interference: each set of equipment has only one electromagnetic coil There will be no problem of high power and low efficiency caused by mutual interference of magnetic lines of force between two or more coils
4. Safety: all lines of the whole machine are insulated by insulating materials and waterways (non-conductive heating). In a real sense, water and electricity are separated. High temperature resistance: 500 ℃ high-temperature mica wire 1200 ℃ insulation material low-voltage soft start is safe
5. Functional practicability: the exclusive software driver has multi period constant temperature and infinitely adjustable power, which is incomparable with other similar products
6. Energy saving: the original electromagnetic internal heating structure, fast heating, hot water is produced within 30 seconds after startup, and the electric energy is fully utilized. The thermal efficiency is more than 98%. Compared with resistance heating (PTC semiconductor far infrared quartz tube carbon fiber), it greatly extends the service life and saves more than 30%.
7. Environmental protection: no harmful gas emission and no residue during operation. It will not affect the surrounding environment. No electromagnetic radiation, no pollution and environmental protection. It is a leading brand in the electric heating industry. And magnetized water does not scale health products
8. Fashion: the noble European style appearance design shows dignity and integrates the warmth of spring.
