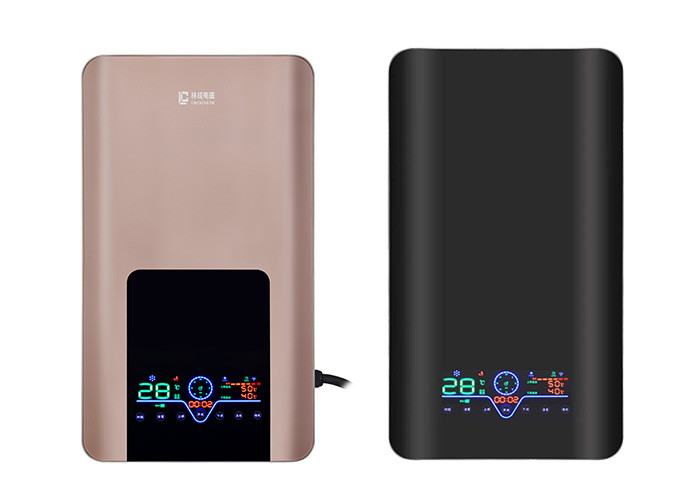

380V 50Hz Wall Mounted Electric Boiler Intelligent Control For Hotels Villas
discussible
MOQ
discussible
Price
380V 50Hz Wall Mounted Electric Boiler Intelligent Control For Hotels Villas
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenyang, Liaoning, China
Brand Name: lincheng
Model Number: LC-B-6kw
High Light:

Wall Mounted Electric Boiler Intelligent

,

Villas Wall Mounted Electric Boiler

,

Hotels Wall Mounted Electric Boiler

Payment & Shipping Terms
Packaging Details: Wooden case packaging
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per day
Specifications
Rated Power: 6kw
Heating Area: 150㎡-180㎡
Input Voltage: 380V50Hz
Heating Mode: Electromagnetic Technology Heating
Colour: Green
Service Life: More Than 15 Years
Product Description

Wall Mounted Electric Boiler Long Service Life And Low Power Consumption



    The heating parts of the wall mounted electric boiler are mainly made of heat-resistant insulating materials and cable materials. The heat generated by the heating cable itself is low. The electromagnetic heating furnace also does not have the problem that the heating wire of the original coil is brittle at high temperature and then reduces its life. Therefore, the service life of the electromagnetic heating furnace is relatively long.


Wall Mounted Electric Boiler Product Parameters:

Serial number Product model Company LC-B-6kw LC-B-8kw LC-B-10kw LC-B-12kw LC-B-15kw
one Rated power KW 6 8 10 12 15
two Rated current A 27.3 36.4 45.5 48.2 52.8
three Heating area 60-80 80-100 100-120 120-140 150-180
four input voltage 50HZ 220V 220V 220V 220V/380V 220V/380V
five Minimum flow of water pump configuration L/min 15 15 20 20 25
six Hot water yield 50 ℃ L/min 5.62 3.75 4.69 5.62 6.9
seven Design thermal efficiency 98% 98% 98% 98% 98%
eight Maximum water temperature 85 85 85 85 85
nine Low temperature protection temperature 5 5 5 5 5
ten Overall dimension (length * width * height) mm 360*170*630 360*170*630 360*170*630 360*170*630 360*170*630
13 Water inlet and outlet interface DN 32 32 32 32 32




What Are The Advantages Of Wall Mounted Electric Boilers:

    1. Widely used

    It is very healthy and comfortable. It is more suitable for modern families, small and medium-sized enterprises and institutions, hotels and villas, and more suitable for residential buildings without collective heating. Compared with other similar heating equipment, the advantages are more obvious. It can give you more energy and time to taste life and make you more comfortable.

    2. Long service life

    Electromagnetic induction heating will be adopted for the heating core part. After the water is heated, it will be magnetized and no scale will be formed. The whole system needs to be free from maintenance. Constant power: through the adjustment of frequency conversion pulse width, the current will automatically decrease when the voltage is high, and the current will automatically increase when the voltage is low, so as to ensure the constant electric power and ensure the service life of the electromagnetic boiler and the heating effect of the user.

    3. Intelligent control

    It is mainly controlled by microcomputer, and also equipped with electronic digital signal power sensor (freely adjustable). The temperature control is more accurate and sensitive, so that the indoor temperature is balanced. Constant temperature setting and various alarm functions, easy to operate, easy to learn and use.
