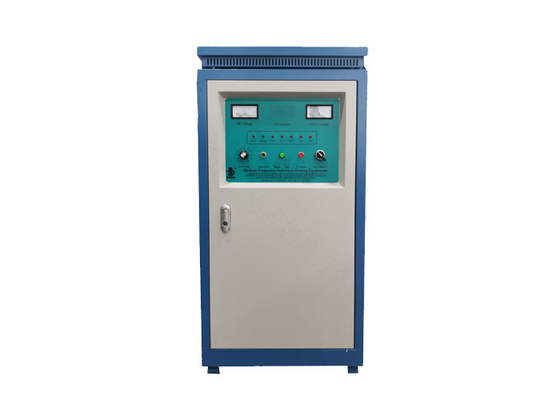

Medium Frequency Induction Heating Equipment Medium Frequency Round Steel Forging Heating Furnace
orking process of intermediate frequency induction heating equipment:
Put aluminum alloy ingots or recycled materials into the charging trolley (the feeding amount is about 300kg each time), put the aluminum alloy ingots or recycled materials in the charging trolley into the combustion chamber of the intermediate frequency induction furnace area through the feeder, and heat the intermediate frequency induction furnace. The exhaust gas and smoke generated in the process of the intermediate frequency induction furnace are discharged through the chimney. The low-temperature aluminum liquid after the intermediate frequency induction furnace flows from the intermediate frequency induction furnace area at a higher position into the insulation area at a lower position, Raise the molten aluminum to the specified temperature and keep it warm in the insulation area. Open the operation furnace door in the insulation area, refine, degass and slag the molten aluminum, purify the molten aluminum, and keep the temperature of the molten aluminum within the set range of aluminum tapping temperature. The aluminum liquid enters the front furnace through the overflow dam at the bottom of the insulation zone, and the aluminum liquid can be discharged through the aluminum outlet of the front furnace.
Technical parameters of high frequency induction heating equipment:
Model: LC-ZP-135KW
Maximum input current: 135A
Input power: 135kW
Oscillation frequency: 13khz
Input voltage: 360v
Host volume:355mm×355mm×485mm
Cooling water pressure: 0.1-0.3mpa
Cooling water flow (main engine): 15L / min (0.1MPa)
Cooling water flow (transformer): 18L / min (0.1MPa)
Water temperature protection point: 50 ℃
Host weight: 40 ± 5% kg
Efficiency: 90%
Main uses of medium frequency induction heating equipment:
1. Hot forming: whole forging, partial forging, hot upsetting, hot rolling;
2. Metal melting: the (vacuum) melting, casting, forming and evaporation coating of gold, silver, copper, iron, aluminum and other metals;
3. Heat treatment: local or overall quenching, annealing, tempering and diathermy of various metals
4. Other applications of high-frequency heater: semiconductor single crystal growth, heat matching, bottle mouth heat sealing, toothpaste skin heat sealing, powder coating, metal implant plastic, etc
5. Welding: brazing of various metal products, welding of various cutter blades and saw teeth, welding of steel pipes and copper pipes, and welding of the same and different metals.
