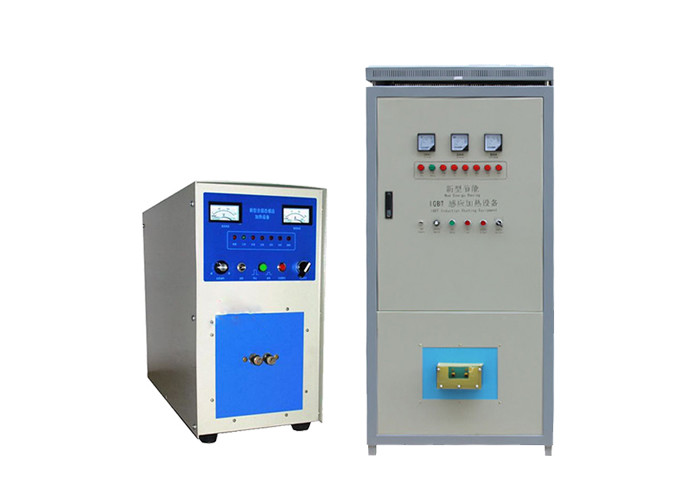

Medium Frequency Induction Heating Equipment Large Frequency Range, Induction Coil Heating Is Relatively Balanced
Advantages of medium frequency induction heating equipment:
The frequency range is large, from 1kHz to 20kHz, and the appropriate frequency can be selected according to the specific diameter of the heated workpiece. When the medium frequency forging furnace heats the whole material, the length of the induction coil is 500mm-1.2m, and there are multiple materials heating at the same time, which further ensures the diathermy effect; The medium frequency monolithic heating furnace adopts continuous heating mode, and the load inside the induction coil is relatively balanced. It overcomes the huge change of the actual heating power of the equipment caused by the huge change of the load when the load of a single bar rises from the room temperature to 1100 ℃ during the whole heating process, so that the actual power of the equipment can be guaranteed to be more than 85% of the rated power value during the whole continuous heating process, and the equipment can be effectively used.
Technical parameters of high frequency induction heating equipment:
Model: LC-ZP-150KW
Maximum input current: 150A
Input power: 150kW
Oscillation frequency: 16khz
Input voltage: 360v
Host volume:358mm×3568mm×488mm
Cooling water pressure: 0.1-0.3mpa
Cooling water flow (main engine): 15L / min (0.1MPa)
Cooling water flow (transformer): 18L / min (0.1MPa)
Water temperature protection point: 50 ℃
Host weight: 40 ± 5% kg
Efficiency: 90%
Advantages of medium frequency induction heating equipment:
1. As a kind of equipment that uses electric power to heat, the intermediate frequency induction heater requires operators to have certain relevant experience. Or it can only be operated after being guided and trained by professional technicians. When the intermediate frequency induction heater is in operation, it is better to have relevant personnel waiting aside, so that when there is a problem in the operation of the intermediate frequency induction heater, the corresponding fault can be found and eliminated. Meanwhile, non relevant personnel cannot dismantle or inspect the intermediate frequency induction heater by themselves.
2. Before the operation of the intermediate frequency induction heater, check the corresponding plugs, wiring, etc. to ensure that there is no problem with the grounding of the intermediate frequency induction heater. This can ensure the safety of staff and eliminate some problems caused by loose wiring or poor grounding.
3. The intermediate frequency induction heater shall be used with resistive and inductive loads. If the capacitive load is used by mistake, it will damage the intermediate frequency induction heater.
4. The induction coil of intermediate frequency induction heater is very important. When the workpiece is ready for heating, check whether the intermediate frequency induction heating coil and output line are well combined. Only in this way can the ideal heating effect be obtained.
