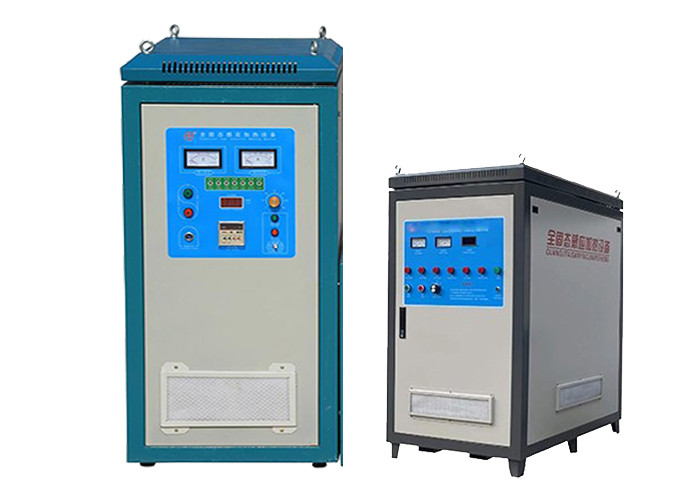

Medium Frequency Induction Heating Equipment Quenching, Melting And Forging Equipment
The intermediate frequency induction heating equipment has some points:
Medium frequency induction heating has high efficiency, small size and easy control. When not heated, no energy is needed, but when you need it, put the heat where you want it. Energy efficiency, labor cost, quality, automation, maintenance, scale loss, cleaning and waste loss are some of the advantages of induction heating forging.
Technical parameters of high frequency induction heating equipment:
Model: LC-ZP-160KW
Maximum input current: 160A
Input power: 160kW
Oscillation frequency: 19khz
Input voltage: 360v
Host volume:360mm×360mm×460mm
Cooling water pressure: 0.1-0.3mpa
Cooling water flow (main engine): 15L / min (0.1MPa)
Cooling water flow (transformer): 18L / min (0.1MPa)
Water temperature protection point: 50 ℃
Host weight: 40 ± 5% kg
Efficiency: 90%
dvantages of medium frequency induction heating equipment:
1. When heating with medium frequency induction heating equipment, please ensure that there is no short circuit in the output line.
2. When the medium frequency induction heating equipment is operating, the operator should stay away from the parts to avoid danger.
3. During the operation of the intermediate frequency induction heating equipment, the equipment may be stopped due to the overcurrent of the intermediate frequency induction heater. After troubleshooting and solving the problem, when restarting the intermediate frequency induction heating equipment, stay on the secondary output control stop key for 5 seconds before releasing the button.
4. During the disassembly and assembly process of the workpiece, the intermediate frequency induction heater shall be in a power-off state. It is not allowed to disassemble and install workpieces when the if sensor is running.
5. Operators should be familiar with all buttons of intermediate frequency induction heating equipment and their respective functions. In case of uncontrollable emergency failure, the machine can be stopped immediately to prevent damage to the intermediate frequency induction heater and heated workpiece.
6. When using medium frequency induction heating equipment, keep dry. When the intermediate frequency induction heater is running, do not touch the buttons on the console at will to avoid uncontrollable danger.
7. The working environment of the intermediate frequency induction heater shall be kept clean.
