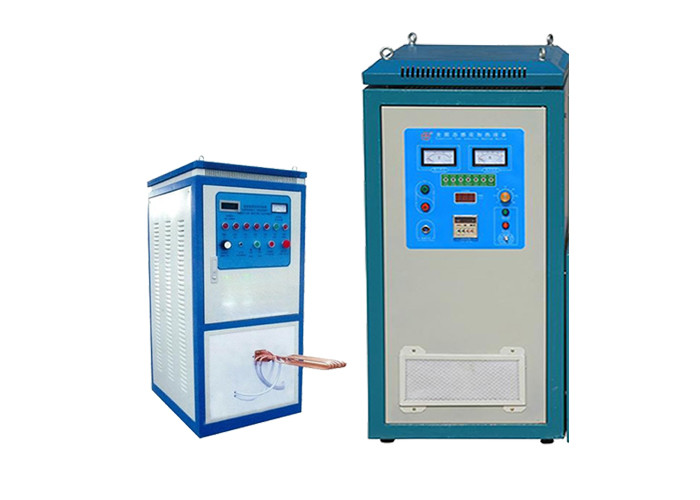

Medium Frequency Induction Heating Equipment Various Metal Surface Quenching And Annealing Equipment

Overview of intermediate frequency induction heating equipment:

The basic components of the intermediate frequency induction heating system include induction coil, AC power supply and workpiece. According to the different objects to be heated, we can make the coil into different shapes in design. The coil is connected with a power supply, which supplies current to the coil. The alternating current flowing through the coil generates an alternating magnetic field passing through the workpiece, which generates eddy currents to heat the workpiece.

Technical parameters of high frequency induction heating equipment:

Model: LC-ZP-170KW

Maximum input current: 170A

Input power: 170kW

Oscillation frequency: 20khz

Input voltage: 370v

Host volume:362mm×362mm×462mm

Cooling water pressure: 0.1-0.3mpa

Cooling water flow (main engine): 15L / min (0.1MPa)

Cooling water flow (transformer): 18L / min (0.1MPa)

Water temperature protection point: 50 ℃

Host weight: 40 ± 5% kg

Efficiency: 90%

Application fields of medium frequency induction heating equipment:

1. Crankshaft, connecting rod, piston pin, crank pin, sprocket, camshaft, valve, various rocker arms and rocker shafts; 2. High frequency quenching treatment of various gears, spline shafts, transmission half shafts, small shafts and shift forks in the gearbox.

3. High frequency quenching of gears and shafts on various electric tools.

4. Heat treatment for high frequency quenching of various hydraulic components and pneumatic components. Such as a column of a plunger pump.

5. Plug, rotor of rotor pump; Quenching of reversing shafts on various valves and gears of gear pumps. 6. Heat treatment of metal parts. Such as high frequency quenching of various gears, sprockets, shafts, spline shafts, pins, etc.

7. Quenching of machine tool surface guide rails in the machine tool industry.
