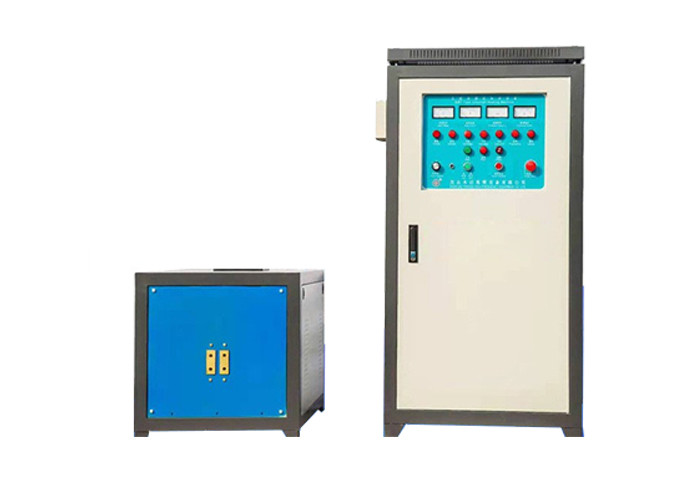

Medium Frequency Induction Heating Equipment Small Heat Treatment Forging Equipment
Heating principle of intermediate frequency induction heating equipment:
The magnetic beam is generated by flowing a high-frequency alternating current to a conductor (usually a copper tube) that is curled into a ring shape. When the metal is placed in it, the magnetic beam will pass through the metal body, and eddy currents (rotating currents) will be generated in the direction of the self payment of the magnetic beam. This induced current generates heat under the influence of the eddy currents. This heating method is induction heating.
Technical parameters of high frequency induction heating equipment:
Model: LC-ZP-175KW
Maximum input current: 175A
Input power: 175kW
Oscillation frequency: 21khz
Input voltage: 370v
Host volume:363mm×363mm×463mm
Cooling water pressure: 0.1-0.3mpa
Cooling water flow (main engine): 15L / min (0.1MPa)
Cooling water flow (transformer): 18L / min (0.1MPa)
Water temperature protection point: 50 ℃
Host weight: 40 ± 5% kg
Efficiency: 90%
Application fields of medium frequency induction heating equipment:
1. Crankshaft, connecting rod, piston pin, crank pin, sprocket, camshaft, valve, various rocker arms and rocker shafts; 2. High frequency quenching treatment of various gears, spline shafts, transmission half shafts, small shafts and shift forks in the gearbox.
3. High frequency quenching of gears and shafts on various electric tools.
4. Heat treatment for high frequency quenching of various hydraulic components and pneumatic components. Such as a column of a plunger pump.
5. Plug, rotor of rotor pump; Quenching of reversing shafts on various valves and gears of gear pumps. 6. Heat treatment of metal parts. Such as high frequency quenching of various gears, sprockets, shafts, spline shafts, pins, etc.
7. Quenching of machine tool surface guide rails in the machine tool industry.
